Rated Power: | 100kW |
Voltage: | 208/220/240V Wye |
Frequency: | 50/60Hz (±5Hz) |
Max Power: | 120/180/240kW |
MPPT Trackers: | 2-4 |
Voltage Range: | 250-850V |
Highlight: | 100kW hybrid inverter with 850V battery,three-phase hybrid inverter 240kW PV,commercial hybrid inverter with battery support |

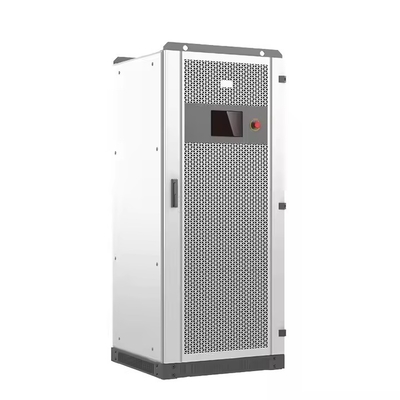

1. High-Power Three-Phase Output
100kW continuous (110kVA peak) power output
Ideal for heavy industrial equipment and high-load applications with stable power supply
2-4 independent MPPT trackers (up to 240kW PV input)
*Eliminates power loss from panel mismatch, increasing energy harvest by 15-20%*
420-850V battery voltage range
Direct connection to modern high-voltage battery systems eliminates need for additional transformers
Category | Specification | Technical Note |
---|---|---|
AC Output | 208/220/240V 3P4W | ±10% automatic voltage adjustment |
Frequency | 50/60Hz (±5Hz adjustable) | Seamless grid synchronization |
PV Input | 250-850V MPPT range | Supports high-voltage PV strings |
Battery | 120-240kW charging power | Fast recharge capability |
Communication | RS485/CAN/TCP/IP | Compatible with major EMS/BMS |
-30°C to 55°C operating range
Maintains performance in extreme environments from arctic cold to desert heat

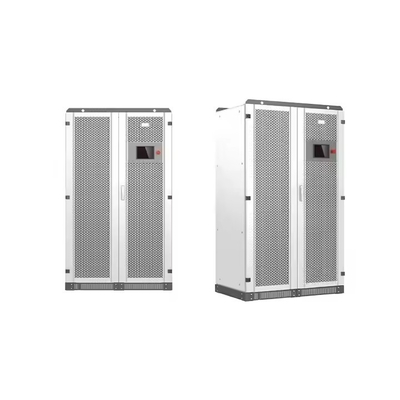

Parallel operation support
Scale capacity infinitely by connecting multiple units with automatic load sharing
7" touchscreen + remote monitoring
Real-time system analytics available via web portal and mobile app
Powers drilling equipment and processing plants
Provides reliable electricity in remote mining sites
Supports resort and community power systems
Reduces diesel consumption by up to 80%
Backup power for manufacturing plants
Prevents costly production downtime
Q: What maintenance is required?
A: Only annual air filter cleaning recommended
*Designed for minimal maintenance with 100,000+ hour component lifespan*
Q: Can it integrate with generators?
A: Yes, with automatic start/stop control
Optimizes generator runtime to reduce fuel costs
Certified to EN 62109, IEC 61727 standards
Meets international safety requirements for industrial equipment
