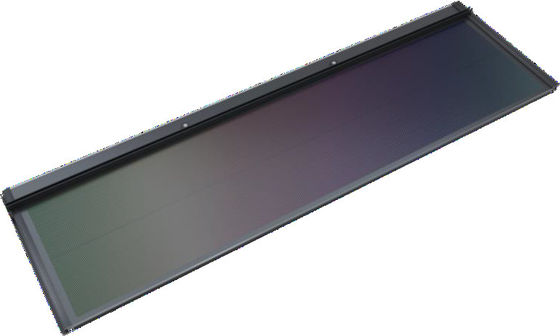

N-TYPE 80W 85w 90W 95W Rectangular Black Tempered Glass BIPV Solar Tiles UL Listed Easy Installation CE Certified

N-TYPE 80W 85w 90W 95W Rectangular Black Tempered Glass BIPV Solar Tiles UL Listed Easy Installation CE Certified

N-TYPE 80W 85w 90W 95W Rectangular Black Tempered Glass BIPV Solar Tiles UL Listed Easy Installation CE Certified

N-TYPE 80W 85w 90W 95W Rectangular Black Tempered Glass BIPV Solar Tiles UL Listed Easy Installation CE Certified

Power:	80w
Maximum Power Point Voltage Vpm [V:	25.82
Maximum Power Point Current Ipm [A:	3.10
Efficiency:	8.5%
Product Appearance Dimension - L * W * H [mm:	146043521
Unit Component Weight [kg:	12(±0.5)
Material:	Tempered Glass
Durability:	Weather Resistant

Download

Product Details

Shape::

Rectangular

Color::

Black

Certifications::

UL Listed, CE Certified

Product Type::

Solar Tiles

Installation::

Easy To Install

Place of Origin:

China

Brand Name:

SANGSOLAR

Certification:

CE/TUV

Model Number:

SANGSOLAR

Minimum Order Quantity:

100m2

Price:

Negotiated

Packaging Details:

Wooden Box

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

10000pcs/Month

High Light:

tempered glass bipv solar tiles

,

90w bipv roof tiles

,

90w bipv solar tiles

Product Description

Product Description:

The BIPV Solar Tiles are made with high-quality tempered glass material, making them durable and long-lasting. The solar tiles are CE Certified and UL Listed, ensuring that they meet the highest safety and performance standards.

These solar tiles feature Grade B solar panels, which are known for their high efficiency and cost-effectiveness. The solar panels use the latest solar tile IBC cell technology, which allows them to generate more power per square foot than traditional solar panels.

One of the best things about these solar tiles is how easy they are to install. They can be installed just like traditional roofing tiles, making the installation process quick and hassle-free. The solar tiles come in a rectangular shape, making them easy to fit on any roof.

By installing these solar tiles on your roof, you can start generating your own clean energy and reduce your reliance on fossil fuels. Not only will you be doing your part for the environment, but you'll also be saving money on your energy bills in the long run.

Overall, the BIPV Solar Tiles are a great investment for anyone looking to upgrade their roof and generate clean energy for their home or business. With their sleek design, high-quality materials, and easy installation, these solar tiles are sure to pay off in the long run.

planar power generation tiles

Electrical performance parameters at STC

1) Zero carbon black flat power generation tile A,

Features:

Product Name: BIPV Solar Tiles
Durability: Weather Resistant
Certifications: UL Listed, CE Certified
Shape: Rectangular
Color: Black
Efficiency: 8.5%

These BIPV Solar Tiles are a type of 3D PVC Wall Panels, designed for Building Integrated Photovoltaics. They are weather resistant, UL Listed and CE Certified, rectangular in shape, and black in color. With an efficiency of 8.5%, these tiles are an excellent choice for sustainable and energy-efficient building projects.

Technical Parameters:

Product Model Number	P0201080	P0201085	P0201090	P0201095	P0201100
Maximum power of single product Pm [W]	80	85	90	95	100
Maximum power per square meter - Pm [W]	160	170	180	190	200
Open circuit voltage Voc [V]	30.92	30.97	31.01	31.06	31.1
Short circuit current Ic [A]	3.42	3.60	3.78	3.96	4.14
Maximum power point voltage Vpm [V]	25.82	26	26.25	26.46	26.68
Maximum power point current Ipm [A]	3.10	3.27	3.43	3.59	3.75
Product appearance dimension - L * W * H [mm]	146043521(±1) (Height refers to the height of the product's border)
Component thickness [mm]	7.5(±1)
Unit component weight [kg]	12(±0.5)
Component weight per square meter [kg]	24(±0.5)
Front plate	Super white tempered glass
Backplane	Super white tempered glass
Borders	Aluminum
Junction Box	IP67, MC4 connector
Colors	Zero carbon black

Applications:

These solar tiles are perfect for a range of applications, from residential homes to commercial buildings. They are particularly well-suited for use on rooftops, where they can be integrated into the existing architecture to provide a seamless and aesthetically pleasing solar power solution.

One great application for the Sangsolar BIPV Solar Tiles is in a folding solar panel kit. These kits are perfect for camping, hiking, and other outdoor activities, and the Sangsolar tiles can be easily integrated to provide a reliable source of clean energy on the go.

Another great application for the Sangsolar BIPV Solar Tiles is in a grid-interconnected solar PV system. These systems allow you to generate your own electricity and sell any excess back to the grid, providing a cost-effective and environmentally friendly energy solution for your home or business.

The Sangsolar BIPV Solar Tiles are UL listed and CE certified, ensuring that they meet the highest standards for safety and performance. And with their sleek black color, they are sure to blend seamlessly with any architectural style.

Customization:

At Sangsolar, we offer product customization services for our Solar Tiles, which are made with high-quality tempered glass and are weather resistant for long-lasting durability. With an efficiency of 8.5%, our black Solar Tiles are the perfect solution for eco-friendly energy production. Our Solar Tiles are made in China and are a reliable and sustainable source of energy for your home or business.

Our product customization services allow you to create a unique solar tile customized to your specific needs. We can help you to choose the right color and product type for your project. We also offer 3D PVC Wall Panels which can be used to create a stunning solar wall or facade. Additionally, we offer Folding Solar Panel Kits to provide a portable energy solution for your outdoor activities.

Packing and Shipping:

Product Packaging:

The BIPV Solar Tiles come in a sturdy cardboard box with protective foam inserts to prevent damage during shipping. Each box contains 25 tiles and necessary installation accessories.

Shipping:

We offer free shipping within the continental United States. For international orders, shipping rates will be calculated at checkout. Orders are typically processed and shipped within 2-3 business days. Customers will receive a tracking number once the order has shipped.

FAQ:

Q: What is BIPV?

A: BIPV stands for Building Integrated Photovoltaics. It refers to the integration of solar power generation and building materials to create a seamless and aesthetically pleasing structure.

Q: What are Sangsolar BIPV Solar Tiles made of?

A: Sangsolar BIPV Solar Tiles are made of high-quality tempered glass and advanced solar cells that are designed to withstand harsh weather conditions.

Q: Where are Sangsolar BIPV Solar Tiles manufactured?

A: Sangsolar BIPV Solar Tiles are proudly manufactured in China.

Q: Can Sangsolar BIPV Solar Tiles be installed on any type of roof?

A: Sangsolar BIPV Solar Tiles are versatile and can be installed on most types of roofs, including pitched and flat roofs.

Q: How much electricity can Sangsolar BIPV Solar Tiles generate?

A: The amount of electricity generated by Sangsolar BIPV Solar Tiles depends on a variety of factors, including the size of the installation, the amount of sunlight in the area, and the angle of the roof. However, Sangsolar BIPV Solar Tiles are highly efficient and can generate a significant amount of electricity.
