Product Description:
The panel dimensions are 1722x1134x30mm, making it a compact and space-saving option for residential and commercial installations. It has a mechanical load capacity of up to 5400Pa on the front side and 2400Pa on the rear side, making it durable and able to withstand harsh weather conditions.
At a weight of only 22kg, this 410-430W mono solar panel is easy to handle and install. Its front glass is AR coated 3.2mm tempered glass, providing superior protection against environmental factors such as hail, wind, and snow.
With its half cut cell technology, this solar panel is able to generate more power than traditional solar panels, delivering higher efficiency and greater energy yields. Its high-quality components and superior engineering make it a reliable and long-lasting choice for any solar energy system.
Investing in our 1 Solar Module product is a smart choice for homeowners and business owners who want to reduce their energy costs and their carbon footprint. Its superior performance and durability make it an excellent choice for any solar panel installation.
Features:
- Product Name: 1 Solar Module
- Output Cables: 4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized
- Solar Cells: N-Type 16BB 182mm (2x54pcs)
- Junction Box: IP68
- Front Glass: 2.0mmAR Coating Semi-tempered Glass
- Power Tolerance(W): (0,+4.99W)
- Features:
- Half Cut Solar Panel
- Monocrystalline Solar Panels
- Mono Half Cut Solar Panel
Technical Parameters:
| ELECTRICAL CHARACTERISTICS |
| Model/QWBDT108- |
410W |
415W |
420W |
425W |
430W |
|
Testing Condition: STC
Maximum Power (Pmax/W)
|
410 |
415 |
420 |
425 |
430 |
| Operating Voltage (Vmpp/V) |
31.28 |
31.49 |
31.70 |
31.91 |
32.12 |
| Operating Current (Impp/A) |
13.11 |
13.18 |
13.25 |
13.32 |
13.39 |
| Open-Circuit Voltage (Voc/V) |
37.90 |
38.11 |
38.32 |
38.57 |
38.74 |
| Short-Circuit Current (Isc/A) |
13.84 |
13.92 |
14.00 |
14.08 |
14.16 |
| Module Efficiency (%) |
21.00 |
21.25 |
21.51 |
21.76 |
22.02 |
REAR SUDE POWER GAIN(REFERENCE TO 420W FRONT)
| Pmax Gain 5% |
10% |
15% |
20% |
25% |
| Pmax/W |
455 |
477 |
483 |
504 |
525 |
| Vmpp/V |
32.70 |
32.70 |
31.70 |
31.70 |
31.70 |
| Impp/A |
13.91 |
14.58 |
15.24 |
15.90 |
16.56 |
| Voc/V |
38.32 |
38.32 |
39.32 |
39.32 |
39.32 |
| Isc/A |
14.07 |
15.40 |
16.10 |
16.80 |
17.50 |
| MECHANICAL CHARACTERISTICS |
| Solar Cell |
Mono-Crystalline Silicon 182*91mm |
| No. of Cells |
108(6*18) |
| Module Dimensions |
1722*1134*30mm(67.80*44.65*1.18inches) |
| Weight |
23kg |
| Front Glass |
2.0mmAR Coating Semi-tempered Glass |
| Back Glass |
1.6mm Black Grid Glass |
| Frame |
Anodized Aluminium Alloy(Black) |
| Junction Box |
IP68,3 Bypass Diodes |
| Output Cables |
4mm² , 300mm(+)/300mm(-) or Customized Length |
| Connectors |
MC4 |
| Maximun System Voltage |
DC1500V |
| Operating Temperature |
-40°C~+85°C |
| Maximun Series Fuse |
25A |
| Safety Protection Class |
ClassⅡ |
| Mechanical Load |
Front side 5400Pa, Backside 2400Pa |
| Refer. Bifaciality Factor |
80%±5% |
TEMPERATURE CHARACTERISTICS
| Temperature Coefficient of Pmax |
-0.34%/°C |
| Temperature Coefficient of Voc |
-0.25%/°C |
| Temperature Coefficient of Isc |
+0.04%/°C |
| Nominal Module Operating Temperature (NOCT) |
42±2°C
|
Applications:
One of the standout features of this solar panel is its half-cut design. This means that the cells are cut in half, which reduces power loss and improves overall efficiency. As a result, you get more power for your money, making it an excellent investment for both residential and commercial applications.
The mono half-cut solar panel is ideal for a range of applications, including residential rooftops, commercial rooftops, and ground-mounted solar systems. It's perfect for both on-grid and off-grid installations, making it a versatile choice for any energy system.

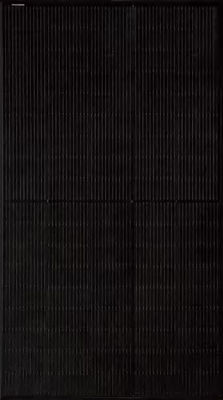

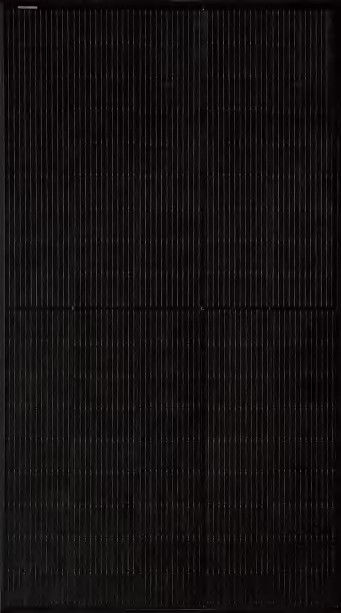

The Sangsolar 182mm 16BB 108Cells All Black Bifacial TOPCon Mono Half Cell solar panel is also incredibly durable. It can withstand a mechanical load of up to 5400Pa on the front side and 2400Pa on the rear side, making it suitable for use in even the harshest environments. It also comes with an IP68 junction box, which is both waterproof and dustproof, ensuring long-lasting performance.
With a maximum series fuse rating of 25A, this solar panel has a power output of 550W, making it one of the most efficient options on the market. It's also lightweight, weighing just 22kg, which makes it easy to install and handle.
Overall, the Sangsolar 182mm 16BB 108Cells All Black Bifacial TOPCon Mono Half Cell solar panel is an excellent choice for anyone looking for a reliable and efficient solar panel. Whether you're a homeowner or a business owner, this solar panel is sure to meet your energy needs.
Support and Services:
The 1 Solar Module product comes with technical support and services to ensure optimal performance and longevity. Our team of experts is available to provide assistance with installation, operation, and maintenance of the product. We also offer troubleshooting services to identify and resolve any issues that may arise. In addition, we provide regular software updates and firmware upgrades to keep the product up-to-date with the latest technology. Our technical support and services are designed to provide our customers with peace of mind and a hassle-free experience.
PACKING CONFIGURATION
| Type of Shipping |
Platform Trailer (17.5m) |
Container 40'HC |
| Pieces/Pallet |
33 |
33 |
| Total Amout |
759 |
594 |
