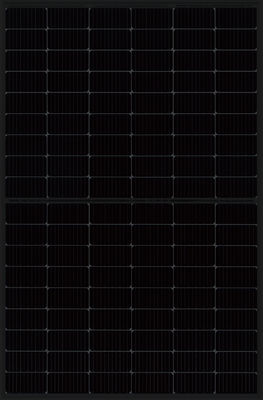

455-475w 2x45 Cells 16BB 182mm Mono Solar Module For 1500 Vdc Systems Hjt Modules

455-475w 2x45 Cells 16BB 182mm Mono Solar Module For 1500 Vdc Systems Hjt Modules

455-475w 2x45 Cells 16BB 182mm Mono Solar Module For 1500 Vdc Systems Hjt Modules

455-475w 2x45 Cells 16BB 182mm Mono Solar Module For 1500 Vdc Systems Hjt Modules

Testing Condition: STC Maximum Power (Pmax/W):	455
Operating Voltage (Vmpp/V):	28.38
Operating Current (Impp/A):	16.03
Module Dimensions:	1960 X 1096 X 30mm (77.17 X 43.15 X 1.18 Inches)
Weight:	26.1kg
External Dimensions:	1960 X 1096 X 30mm
Cell Type:	Monocrystalline Silicon
Connector:	MC4 Compatible

Download

Product Details

Solar Cells::

N-Type 16BB 182mm (2x54pcs)

Maximum System Voltage(V)::

1500Vdc (IEC / UL)

Place of Origin:

China

Brand Name:

SANGSOLAR

Certification:

CE/TUV/BSP/CSI

Model Number:

SANGSOLAR

Minimum Order Quantity:

Pallet

Price:

Negotiated

Packaging Details:

Carton on Pallet

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

2GW/Year

High Light:

182mm mono solar module

,

475w hjt modules

,

475w mono solar module

Product Description

Product Description:

With a maximum series fuse rating of 25A, this 455-475w mono solar panel is both safe and efficient. It also boasts a power tolerance of (0, +4.99W), ensuring that it will consistently perform at its best. Whether you're looking to power your home or business, this 550w mono solar panel is a great option.

The panel can withstand mechanical loads of up to 5400Pa on the front side and 2400Pa on the rear side, making it durable and long-lasting. It is also designed with MC4-compatible connectors, making installation simple and hassle-free.

In addition to its impressive performance capabilities, this solar panel also features a sleek and modern design. Its all-black finish and bifacial construction make it an attractive addition to any building or property.

Investing in the 182mm 16BB 108Cells All Black Bifacial HJT Mono Half Cell is a smart choice for those looking to reduce their carbon footprint and save money on energy costs. Its high efficiency and reliable performance make it a standout product in the solar panel market.

Features:

Product Name: 455-475w Solar Module
Front Glass: AR Coated 3.2 Mm Tempered Glass
Weight: 22kg
Cell Type: Monocrystalline Silicon
Panel Dimensions: 1960 x 1096 x 30mm
Power Tolerance(W): (0,+4.99W)
450 watt mono solar panel
mono half cut solar panel
mono solar panel

Technical Parameters:

455-475w 2x45 Cells 16BB 182mm Mono Solar Module For 1500 Vdc Systems Hjt Modules 0

Model/QWBDN90-	455W	460W	465W	470W	475W
Testing Condition: STC Maximum Power (Pmax/W)	455	460	465	470	475
Operating Voltage (Vmpp/V)	28.38	28.64	28.89	29.15	29.40
Operating Current (Impp/A)	16.03	16.06	16.09	16.12	16.15
Open-Circuit Voltage (Voc/V)	33.48	33.68	33.88	34.08	34.28
Short-Circuit Current (Isc/A)	17.02	17.07	17.12	17.17	17.22
Module Eﬃciency (%)	21.18	21.41	21.65	21.88	22.11

REAR SIDE POWER GAIN(REFERENCE TO 465W FRONT)

Pmax Gain	5%	10%	15%	20%	25%
Pmax/W	488.25	511.5	534.75	558	581.25
Vmpp/V	29.04	29.06	29.06	29.09	29.09
Impp/A	16.92	17.60	18.40	19.18	19.98
Voc/V	33.95	33.95	33.97	33.98	33.98
Isc/A	17.45	17.98	18.75	19.46	20.13

MECHANICAL CHARACTERISTICS

Solar Cell	HJT 210 x 105mm
No. of Cells	90 (2 x 45)
Module Dimensions	1960 x 1096 x 30mm (77.17 x 43.15 x 1.18 inches)
Weight	26.1kg
Front Glass	2.0mmAR Coating Semi-tempered Glass
Back Glass	2.0mm Glazed Semi-tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68, 3 Bypass Diodes
Output Cables	4mm² , 300mm(+)/300mm(-) or Customized Length
Connectors	MC4

455-475w 2x45 Cells 16BB 182mm Mono Solar Module For 1500 Vdc Systems Hjt Modules 1

APPLICATION CONDITIONS

Maximun System Voltage	DC1500V
Operating Temperature	-40°C~+85°C
Maximun Series Fuse	30A
Safety Protection Class	ClassⅡ
Mechanical Load	Front side 5400Pa, Backside 2400Pa

TEMPERATURE CHARACTERISTICS

Temperature Coeﬃcient of Pmax	-0.34%/°C
Temperature Coeﬃcient of Voc	-0.25%/°C
Temperature Coeﬃcient of Isc	+0.04%/°C
Nominal Module Operating Temperature (NOCT)	42±2°C

Applications:

The 450 watt mono solar panel is ideal for residential and commercial rooftops. Its black color and sleek design make it perfect for installations where appearance is important. The half cut solar panel technology used in this module improves its efficiency and performance, making it ideal for areas with limited space.

Whether you are looking to power your home or business, the 182mm All Black Bifacial hjt solar module is a great choice. Its MC4 compatible connector makes installation quick and easy. The panel dimensions of 1960 x 1096 x 30mm make it easy to fit onto most rooftops.

This solar module is also ideal for off-grid scenarios. Its high power output and efficiency make it perfect for powering remote locations, such as cabins and RVs. It can also be used for marine applications, such as powering boats and yachts.

Overall, the Sangsolar 182mm All Black Bifacial TOPCon solar module is a versatile and efficient choice for a variety of occasions and scenarios. Its high power output, sleek design, and ease of installation make it a great choice for both residential and commercial applications.

Support and Services:

Our 1 Solar Module product technical support and services include:

Assistance with installation and setup
Troubleshooting of technical issues
Repair and replacement services
Regular maintenance and cleaning recommendations
Online resources and documentation

We are committed to providing excellent customer service and ensuring the long-term performance and efficiency of our solar modules.

PACKING CONFIGURATION

Type of Shipping	Platform Trailer (17.5m)	Container 40'HC
Pieces/Pallet	33	33
Total Amout	759	594
