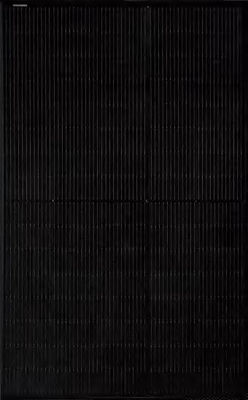

405-425w 2x40 Cells All Black Bifacial Solar Module 182mm 16BB Half Cell Solar Module

405-425w 2x40 Cells All Black Bifacial Solar Module 182mm 16BB Half Cell Solar Module

405-425w 2x40 Cells All Black Bifacial Solar Module 182mm 16BB Half Cell Solar Module

405-425w 2x40 Cells All Black Bifacial Solar Module 182mm 16BB Half Cell Solar Module

Maximum Power- Pmax(W):	405w
Operating Voltage (Vmpp/V):	25.22
Operating Current (Impp/A):	16.06
Module Dimensions:	1748 X 1096 X 30mm (68.82 X 43.15 X 1.18 Inches)
Weight:	23kg
Product Name:	HJT Solar Module
Maximum System Voltage(V):	1500Vdc (IEC / UL)
Maximum Series Fuse Rating (A):	25A

Download

Product Details

Mechanical Load::

Front Side Max. 5400Pa, Rear Side Max. 2400Pa

External Dimensions::

1722x1134x30mm

Output Cables::

4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized

Power Tolerance(W)::

（0，+4.99W）

Place of Origin:

China

Brand Name:

SANGSOLAR

Certification:

CE/TUV/BSP/CSI

Model Number:

SANGSOLAR

Minimum Order Quantity:

Pallet

Price:

Negotiated

Packaging Details:

Carton on Pallet

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

2GW/Year

High Light:

bifacial solar module 182mm

,

16bb half cell solar module

,

425w bifacial solar module

Product Description

Product Description:

One of the key features of this solar panel is its use of half cut cell technology. This innovative design allows the solar panel to generate more power from each cell, resulting in a higher overall efficiency rating. With the use of half cut cell solar panels, you can achieve greater energy output from a smaller footprint, making it easier to install and manage your solar power system.

The solar panel's front glass is made from AR coated 3.2 mm tempered glass, ensuring durability and longevity. The external dimensions of the solar panel are 1722x1134x30mm, making it easy to install on a variety of surfaces. The output cables are 4.0mm² and 1200mm long, with the length being customizable to fit your specific installation needs.

With a maximum system voltage of 1500Vdc (IEC / UL), this solar panel is designed to withstand harsh weather conditions and provide reliable energy output year-round. The junction box is also IP68 rated, ensuring protection against dust and water ingress.

Overall, the 550 watt monocrystalline solar panel is a top-of-the-line product that delivers exceptional performance and durability. With its use of half cut cell technology and high-efficiency rating, it's the perfect choice for anyone looking to maximize their solar power system's energy output and reduce their overall energy costs.

Features:

Product Name: 405-425w Solar Module
External Dimensions: 1748 x 1096 x 30mm
Maximum Power- Pmax(W): 405-425w
Junction Box: IP68
Output Cables: 4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized
Solar Cells: N-Type 16BB 182mm (2x54pcs)
Features:
- 550w mono solar panel
- Half cut cell solar panels
- Mono half cut solar panel

Technical Parameters:

405-425w 2x40 Cells All Black Bifacial Solar Module 182mm 16BB Half Cell Solar Module 0

ELECTRICAL CHARACTERISTICS

Model/QWBDN80-	405W	410W	415W	420W	425W
Testing Condition: STC Maximum Power (Pmax/W)	405	410	415	420	425
Operating Voltage (Vmpp/V)	25.22	25.49	25.75	26.01	26.27
Operating Current (Impp/A)	16.06	16.09	16.12	16.15	16.18
Open-Circuit Voltage (Voc/V)	29.76	29.96	30.15	30.30	30.50
Short-Circuit Current (Isc/A)	17.05	17.10	17.15	17.20	17.25
Module Eﬃciency (%)	21.14	21.40	21.66	21.92	22.18

REAR SIDE POWER GAIN(REFERENCE TO 415W FRONT)

Pmax Gain	5%	10%	15%	20%	25%
Pmax/W	435.75	456.5	477.25	498	518.75
Vmpp/V	25.76	25.77	25.77	25.79	25.79
Impp/A	16.92	18.06	18.52	19.31	20.11
Voc/V	30.15	30.15	30.16	30.16	30.18
Isc/A	17.74	18.68	19.32	20.05	20.63

MECHANICAL CHARACTERISTICS

Solar Cell	HJT 210 x 105mm
No. of Cells	80 (2 x 40)
Module Dimensions	1748 x 1096 x 30mm (68.82 x 43.15 x 1.18 inches)
Weight	23kg
Front Glass	2.0mmAR Coating Semi-tempered Glass
Back Glass	2.0mm Heat Strengthened Glass
Frame	Anodized Aluminium Alloy (Black)
Junction Box	IP68, 3 Bypass Diodes
Output Cables	4mm² , 300mm(+)/300mm(-) or Customized Length
Connectors	MC4

405-425w 2x40 Cells All Black Bifacial Solar Module 182mm 16BB Half Cell Solar Module 1

APPLICATION CONDITIONS

Maximun System Voltage	DC1500V
Operating Temperature	-40°C~+85°C
Maximun Series Fuse	30A
Safety Protection Class	ClassⅡ
Mechanical Load	Front side 5400Pa, Backside 2400Pa

TEMPERATURE CHARACTERISTICS

Temperature Coeﬃcient of Pmax	-0.34%/°C
Temperature Coeﬃcient of Voc	-0.25%/°C
Temperature Coeﬃcient of Isc	+0.04%/°C
Nominal Module Operating Temperature (NOCT)	42±2°C

Applications:

The Sangsolar 182mm All Black Bifacial TOPCon solar module is perfect for various application occasions and scenarios. The module is a half cell mono solar panel that features bifacial technology. This technology captures sunlight from both sides of the panel, resulting in higher energy yields. The module also features a half-cut design, which reduces the energy loss caused by shading and increases the overall performance of the system.

These monocrystalline solar panels are suitable for residential and commercial installations. They are ideal for rooftop installations, carports, and ground-mounted systems. The panels' dimensions of 1722x1134x30mm make them easy to install, and their IP68-rated junction box ensures that they are resistant to dust and water.

The Sangsolar 182mm All Black Bifacial TOPCon solar module is perfect for areas with limited space. The half-cut design allows for more panels to be installed in a limited space, resulting in higher power output. These panels are also suitable for areas with varying weather conditions. The bifacial technology used in these panels allows them to generate power from both direct and diffused sunlight, making them ideal for cloudy and overcast days.

In conclusion, the Sangsolar 182mm All Black Bifacial TOPCon solar module is a reliable and efficient product that is perfect for various application occasions and scenarios. Its half cell mono solar panel, monocrystalline solar panels, and half-cut solar panel design make it ideal for areas with limited space and varying weather conditions. Whether you're looking to install solar panels for your home or business, the Sangsolar 182mm All Black Bifacial TOPCon solar module is an excellent choice.

Support and Services:

The 1 Solar Module is designed to provide reliable and efficient solar power generation. Our technical support team is available to assist with any questions or concerns regarding installation, operation, and maintenance of the product.

Our services include:

Remote troubleshooting and diagnostics
In-person technical support and training
Warranty and repair services
System design and engineering
Performance optimization and monitoring

We are committed to ensuring our customers receive the highest level of support and service for their 1 Solar Module system.

PACKING CONFIGURATION

Type of Shipping	Platform Trailer (17.5m)	Container 40'HC
Pieces/Pallet	33	33
Total Amout	759	594
