Product Description:

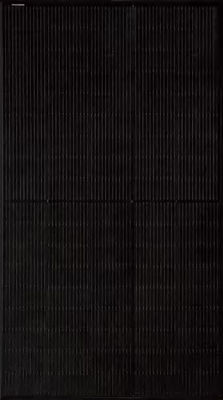

The PERC Solar Module is a mono perc half cell module, which means that it contains half-cut solar cells that boost the power output of the panel. This module has a power output of 400-410w , making it ideal for large-scale installations. The black frame enhances the aesthetic appeal of the panel and gives it a sleek look that blends well with any roof type.
The PERC Solar Module is designed to operate in extreme temperatures, with a temperature range of -40°C~+85°C. This makes it a reliable choice for locations with harsh weather conditions. The panel comes with MC4 connectors that make it easy to install and connect to other panels in a solar array.
Overall, the PERC Solar Module is a high-quality solar panel that delivers excellent performance, durability, and aesthetics. It is a great choice for residential and commercial installations that demand high power output and reliability.
Features:
The Bifacial PERC Solar Module (half-cut) has a power output of 400-410w . It is equipped with a dual-sided generation feature, which effectively reduces the balance of system (BOS) costs while also improving conversion efficiency, reaching an impressive 21.25%.
Thanks to its innovative non-destructive cutting technology, the module has less loss and reduces the risk of hidden cracks, promising a higher yield for PV systems. It is resistant to light induced degradation and harsh environments such as sand, dust, salt mist, and ammonia gas, making it highly durable.
In addition to its reliable features, the module is highly safe and has passed a Fire test Class A. It's also IP68 water resistant for long-term weather endurance. Its excellent linear power warranty ensures power degradation within 2-30 years is ≤ 0.45% per year and the minimum module output power won't be lower than 85% each 30 years.
STC*
| (Pmax) |
400 W |
405 W |
410 W |
| Tolerance |
0~+5 W |
0~+5 W |
0~+5 W |
| Efficiency |
20.46 % |
20.72 % |
20.97 % |
| (Vmp) |
30.23 V |
30.41 V |
30.57 V |
| (Imp) |
13.23 A |
13.32 A |
13.41 A |
| (Voc) |
36.77 V |
36.94 V |
37.11 V |
| (Isc) |
13.84 A |
13.93 A |
14.02 A |
NOCT*
| (Pmax) |
295 W |
298 W |
302 W |
| (Vmp) |
28.78 V |
28.98 V |
29.18 V |
| (Imp) |
10.25 A |
10.28 A |
10.35 A |
| (Voc) |
34.49 V |
34.69 V |
34.89 V |
| (Isc) |
10.70 A |
10.75 A |
10.80 A |
Applications:
The mechanical load of the PERC Solar Module is front side 5400Pa and backside 2400Pa, making it ideal for installation in harsh weather conditions. With a bifaciality factor of 70%±5%, this product is capable of generating more energy than conventional solar modules.
The operating temperature of the PERC Solar Module ranges from -40°C to +85°C, making it suitable for use in extreme temperatures. This product is also equipped with a black frame and belongs to the 405W mono PERC half-cell MBB black frame series.
The PERC Solar Module is perfect for use in residential and commercial settings. It can be used to power homes, offices, and other buildings. This product can also be used in off-grid applications such as powering remote cabins, RVs, and boats.
Moreover, the PERC Solar Module is ideal for use in large-scale solar projects. It can be used to create solar farms, and its high performance ensures maximum energy production.
In summary, the PERC Solar Module by Sangsolar is a versatile and reliable product that can be used in various occasions and scenarios. Its high performance, durability, and efficiency make it an excellent choice for anyone seeking to harness the power of the sun.
Support and Services:
The PERC Solar Module product technical support and services include:
- Installation and commissioning support
- Product troubleshooting and maintenance
- Product warranty and claim support
- Product performance monitoring and analysis
- Technical training programs for installers and technicians
- Product documentation and user manuals
Our team of experienced technical support staff is available to assist with any questions or issues related to the PERC Solar Module product.
FAQ:
Q: What is the brand name of the solar module?
A: The brand name of the solar module is Sangsolar.
Q: What is the model number of the solar module?
A: The model number of the solar module is QWBDM108-.
Q: Where is the solar module manufactured?
A: The solar module is manufactured in China.
Q: What is the power output of the solar module?
A: The power output of the solar module is dependent on the specific unit, but it generally has a power output of 330-350 watts.
Q: What is the warranty for the solar module?
