Product Description:

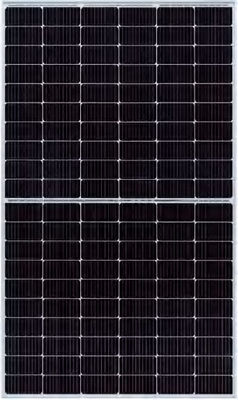

One of the standout features of this PERC Mono Solar Panel is its connectors. The MC4 connectors are designed to be easy to use and highly reliable, ensuring long-lasting performance. The anodized aluminum alloy black frame also provides excellent protection against the elements, while the 1.6mm black grid-patterned back glass adds an extra layer of durability and security.
In terms of mechanical load, the PERC Mono Solar Panel is built to withstand tough conditions. The front side can handle a mechanical load of up to 5400Pa, while the back side can handle up to 2400Pa. This means that the solar module can withstand heavy snow loads and strong winds, making it ideal for use in a wide range of climates and locations.
The module dimensions for this PERC Mono Solar Panel are 2172*1303*35mm, making it a compact and easy-to-install option for a variety of applications. Whether you're looking to power your home or business, this solar panel is a reliable and efficient choice.
Overall, the PERC Mono Solar Panel is an excellent choice for anyone looking for high-quality solar modules that offer superior performance, durability, and efficiency. With its MC4 connectors, anodized aluminum alloy black frame, and 1.6mm black grid-patterned back glass, this solar panel is built to last and provide reliable power for years to come.
Features:
The Bifacial PERC Solar Module (half-cut) offers a power output of 590-610w, making it a highly efficient option for solar generation systems. Its dual-sided generation capability allows for maximum energy generation in both direct and indirect sunlight, effectively reducing balance of system (BOS) costs and boosting overall performance. In addition, its conversion efficiency reaches up to 21.25%, providing superior energy output.
To ensure maximum yield for PV systems, this module also features innovative non-destructive cutting technology which reduces the risk of hidden cracks and minimizes loss. As a result, this module promises higher overall yield for your solar energy system while also delivering enhanced safety levels.
These modules have passed a Class A fire test and offer IP68 water resistance, ensuring long-term weather endurance. They are also resistant to light induced degradation and can withstand harsh environments such as salt mist, sand, dust, and ammonia gas.
With excellent linear power warranty, these modules offer power degradation within 2-30 years which is ≤ 0.45% per year. The minimum module output power is also not lower than 85% each 30 years, providing a reliable and long-lasting energy solution.
| ELECTRICAL CHARACTERISTICS |
| Testing Condition: STC Maximum Power (Pmax/ |
590 |
595 |
600 |
605 |
610 |
| Operating Voltage (Vmp |
34.01 |
34.2 |
34.41 |
34.6 |
34.78 |
| Operating Current (Impp |
17.35 |
17.4 |
17.44 |
17.49 |
17.54 |
| Model/QWBSM120- |
590W |
595W |
600W |
605W |
610W |
| Open-Circuit Voltage (Vo |
41.11 |
41.3 |
41.51 |
41.7 |
41.89 |
| Short-Circuit Current (Isc/A) |
18.42 |
18.47 |
18.52 |
18.57 |
18.62 |
| Module Efficiency (%) |
20.85 |
21.02 |
21.2 |
21.38 |
21.55 |
STC: Irradiance 1000W/m², Spectra at AM1.5,Cell Temperature 25℃ .
Power Output Tolerance: 0~+5W, Test Uncertainty for Pmax:±3%
MECHANICAL CHARACTERISTICS
| Solar Cell |
Mono-Crystalline Silicon 210*105mm |
| No. of Cells |
120(6*20) |
| Module Dimensions |
2172*1303*35mm(85.51*51.30*1.38inches) |
| Weight |
30.9kg |
| Front Glass |
3.2mmAR Coating Tempered Glass |
| Backsheet |
PET,PVF and Other Materials |
| Frame |
Anodized Aluminium Alloy |
| Junction Box |
IP68,3 Bypass Diodes |
| Output Cables |
4mm² , 300mm(+)/300mm(-) or Customized Length |
| Connectors |
MC4 |
APPLICATION CONDITIONS
| Maximun System Voltage |
DC1500V |
| Operating Temperature |
-40°C~+85°C |
| Maximun Series Fuse |
30A |
| Safety Protection Class |
ClassⅡ |
| Mechanical Load |
Front side 5400Pa, Backside 2400Pa |
TEMPERATURE CHARACTERISTICS
| Temperature Coefficient of Pmax |
-0.34%/°C |
| Temperature Coefficient of Voc |
-0.25%/°C |
| Temperature Coefficient of Isc |
+0.04%/°C |
| Nominal Module Operating Temperature (NOCT) |
42±2°C |
Support and Services:
The PERC Solar Module product offers comprehensive technical support and services to ensure customer satisfaction and optimal system performance. Our team of experienced engineers and technicians provide expert guidance and troubleshooting assistance to address any issues that may arise during installation, operation, or maintenance of the product.
We offer a range of services including system design and optimization, on-site commissioning and training, as well as remote monitoring and diagnostic support. Our goal is to ensure maximum energy output and system reliability for our customers.
In addition, we provide regular product updates and maintenance services to keep your system up-to-date and running smoothly. Our commitment to customer service and satisfaction is reflected in our extensive warranty program and ongoing support throughout the product lifecycle.
FAQ:
Q1: What is the brand name of the solar module?
A1: The brand name of the solar module is Sangsolar.
Q2: What is the model number of the solar module?
A2: The model number of the solar module is PERC BSM120-590-610-210
Q3: Where is the solar module manufactured?
A3: The solar module is manufactured in China.
Q4: What is the power output of the solar module?
A4: The power output of the solar module is dependent on the specific model and can be found in the product specifications.
Q5: Is the solar module compatible with other solar products?
A5: The compatibility of the solar module with other solar products is dependent on the specific products and should be verified with the manufacturer.
PACKING CONFIGURATION
| Type of Shipping |
Platform Trailer (17.5m) |
Container 40'HC |
| Pieces/Pallet |
33 |
33 |
| Total Amout |
759 |
594 |
