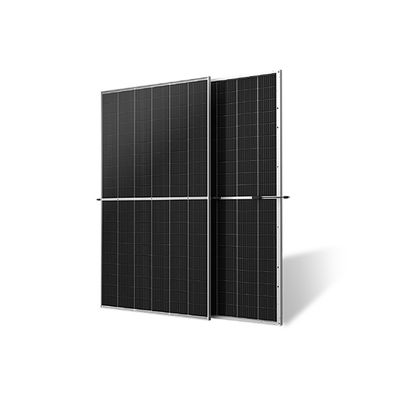

Product Description:
One of the key features of this mono perc half cut 400 watt solar panel is its maximum series fuse of 30A, which ensures that your solar power system is always protected from overcurrents. Additionally, the module dimensions of 2384*1303*33mm make it easy to install in any space. It also features a junction box with an IP68 rating, which means that it is completely dust-tight and can withstand continuous immersion in water, making it perfect for outdoor installations.
The PERC Solar Module also features 3 bypass diodes, which ensures that the panel will continue to function even if one or more cells are shaded or damaged. This provides maximum efficiency and ensures that your solar power system will continue to produce energy even in less than ideal conditions. With a total of 2x66 cells, this mono half cut solar panel provides a high level of energy output, making it perfect for large-scale solar projects.
In summary, the PERC Solar Module is a top-of-the-line solar panel that features the latest in solar technology. Its durable
construction, maximum series fuse, and bypass diodes ensure that it will provide reliable energy output for years to come. Its large number of cells and module dimensions make it easy to install and perfect for large-scale solar projects.
MECHANICAL CHARACTERISTICS
| Solar Cell | Mono-Crystalline Silicon 210*105mm |
| No. of Cells | 132(6*22) |
| Module Dimensions | 2384*1303*33mm(93.86*51.30*1.30inches) |
| Weight | 38.3kg |
| Front Glass | 2.0mm AR Coating Tempered Glass |
| Back Glass | 2.0mm White Grid- patterned Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68,3 Bypass Diodes |
| Output Cables | 4mm²,300mm(+)/300mm(-)
or Customized Length |
| Connectors | MC4 |
APPLICATION CONDITIONS
| Maximun System Voltage | DC1500V |
| Operating Temperature | -40°C~+85°C |
| Maximun Series Fuse | 30A |
| Safety Protection Class | ClassⅡ |
| Mechanical Load | Front side 5400Pa, Back side 2400Pa |
| Refer.Bifaciality Factor | 70%±5% |
TEMPERATURE CHARACTERISTICS
| Temperature Coefficient of Pmax | -0.34%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Nominal Module Operating Temperature (NOCT) | 42±2°C |
I-V CURVE
Features:
The Bifacial PERC Solar Module (half-cut) 645-665w offers a high power output with dual-sided generation, resulting in effectively reducing balance of system (BOS) costs. The conversion efficiency reaches an impressive 21.25%.
This module utilizes innovative non-destructive cutting technology to reduce the risk of hidden cracks, promising a higher yield for your PV system. Additionally, it boasts less loss compared to other modules.
With its enhanced safety level, this module has passed a Fire test Class A and is IP68 water resistant for long-term weather endurance. It is also resistant to harsh environments such as salt mist, sand and dust, and ammonia gas.
This module is rarely affected by light-induced degradation and offers an excellent linear power warranty. With power degradation within 2-30 years ≤ 0.45% per year, the minimum module output power is not lower than 85% each 30 years.
TECHNICAL DRAWINGS
ELECTRICAL CHARACTERISTICS
| Model/BDM132-645-665-210 | 645W | 650W | 655W | 660W | 665W |
| Testing Condition: STC Maximum Power (Pmax/W) | 645 | 650 | 655 | 660 | 665 |
| Operating Voltage (Vmpp/V) | 37.48 | 37.69 | 37.89 | 38.09 | 38.29 |
| Operating Current (Impp/A) | 17.21 | 17.25 | 17.29 | 17.33 | 17.37 |
| Open-Circuit Voltage (Voc/V) | 45.30 | 45.50 | 45.70 | 45.90 | 46.10 |
| Short-Circuit Current (Isc/A) | 18.29 | 18.33 | 18.38 | 18.43 | 18.48 |
| Module Efficiency (%) | 20.76 | 20.92 | 21.09 | 21.25 | 21.41 |
| Pmax Gain | 5% | 10% | 15% | 20% | 25% |
| Pmax/W | 688 | 721 | 773 | 807 | 841 |
| Vmpp/V | 37.89 | 37.89 | 38.89 | 38.89 | 38.89 |
| Impp/A | 18.15 | 19.02 | 19.88 | 20.75 | 21.61 |
| Voc/V | 45.70 | 45.70 | 45.90 | 45.90 | 45.90 |
| Isc/A | 19.30 | 20.22 | 21.14 | 22.06 | 22.98 |
Support and Services:
Our PERC Solar Module product comes with comprehensive technical support and services to ensure that our customers receive the highest quality and most reliable solar modules. Our technical support team is available to answer any questions or concerns you may have regarding the installation, operation, and maintenance of our products. Our services include:
- Installation assistance and guidance
- Module testing and analysis
- Maintenance and repair services
- Warranty and product registration support
- Technical training and education
We are committed to providing our customers with exceptional service and support throughout the lifetime of our products. Contact us today to learn more about our technical support and service offerings.
FAQ:
Q: What is the brand name of the solar module?
A: The brand name of the solar module is Sangsolar.
Q: What is the model number of the solar module?
A: The model number of the solar module is BDM132-645-665-210
Q: Where is the solar module manufactured?
A: The solar module is manufactured in China.
Q: What is the power output of the solar module?
A: The power output of the solar module varies depending on factors such as sunlight intensity and temperature. However, the maximum power output is 665 watts.
Q: What is the warranty period for the solar module?
A: We offer a 25-year warranty for the power output of the solar module and a 10-year warranty for the product itself.
PACKING CONFIGURATION
| Type of Shipping | Platform Trailer (17.5m) | Container 40'HC |
| Pieces/Pallet | 33 | 33 |
| Total Amout | 759 | 594 |
