Product Description:
One of the standout features of the PERC Solar Module product is its ability to operate in extreme temperatures. It can function between -40°C and +85°C, making it an ideal solar panel for harsh weather conditions. The output cables are 4mm2, 300mm (+)/300mm (-), but can also be customized to fit your specific needs.
Another impressive feature of the PERC Solar Module product is its mechanical load capacity. The front side can handle up to 5400Pa of pressure, while the backside can handle up to 2400Pa. This ensures that your solar panel will remain sturdy and reliable no matter the external conditions.

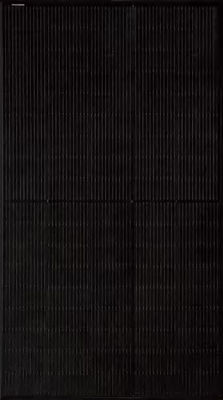

The PERC Solar Module product is a black mono PERC solar panel that utilizes half-cell MBB technology. This results in a higher efficiency rating and better performance overall. It has an impressive output of 405W, making it one of the most powerful solar panels available.
If you're looking for a top-of-the-line solar panel, the PERC Solar Module product is an excellent choice. It's manufactured by Canadian Solar, a trusted and reliable brand in the solar industry. With 415 Canadian Solar panels available, you can be sure that you're getting a high-quality product that will last for years to come.
Features:
Higher Power Output
Dual-sided generation ensures that the Bifacial PERC Solar Module produces a higher power output compared to other solar modules on the market, providing more energy for your PV system.
Reduced Costs
By effectively reducing balance of system (BOS) costs, the Bifacial PERC Solar Module makes it more economical for you to invest in the technology. Conversion efficiency reaches 21.25%, so you can be assured of maximum energy output for your investment.
Reduced Risk
The innovative non-destructive cutting technology used in the manufacturing of the Bifacial PERC Solar Module reduces the risk of hidden cracks, ensuring a higher yield for your PV system in the long run.
Enhanced Safety
The Bifacial PERC Solar Module has passed the Fire test Class A and is highly resilient, featuring a IP68 water-resistant structure for long-term weather endurance.
Excellent Durability
The Bifacial PERC Solar Module is resistant to light-induced degradation, which means that its efficiency will be maintained in even the harshest of environments. It is also resistant to salt mist, sand and dust, ammonia gas and other elements.
Long Warranty Period
The Bifacial PERC Solar Module has an excellent linear power warranty, with power degradation within 2-30 years being less than or equal to 0.45% per year. The minimum module output power is not lower than 85% each 30 years.
| ELECTRICAL CHARACTERISTICS |
| Model/QWBDM120- |
435W |
440W |
445W |
450W |
455W |
|
Testing Condition: STC
Maximum Power (Pmax/W)
|
435 |
440 |
445 |
450 |
455 |
| Operating Voltage (Vmpp/V) |
34.67 |
34.76 |
34.85 |
34.94 |
35.03 |
| Operating Current (Impp/A) |
12.55 |
12.66 |
12.77 |
12.88 |
12.99 |
| Open-Circuit Voltage (Voc/V) |
41.09 |
41.17 |
41.25 |
41.33 |
41.41 |
| Short-Circuit Current (Isc/A) |
13.40 |
13.51 |
13.62 |
13.73 |
13.84 |
| Module Efficiency (%) |
20.04 |
20.27 |
20.50 |
20.73 |
20.96 |
STC: Irradiance 1000W/m², Spectra at AM1.5,Cell Temperature 25℃.
Power Output Tolerance: 0~+5W, Test Uncertainty for Pmax:±3%
REAR SUDE POWER GAIN(REFERENCE TO 445W FRONT)
| Pmax Gain |
5% |
10% |
15% |
20% |
25% |
| Pmax/W |
456.7 |
478.5 |
500.3 |
522 |
543.8 |
| Vmpp/V |
34.85 |
34.85 |
34.87 |
34.87 |
34.87 |
| Impp/A |
13.11 |
13.73 |
14.35 |
14.97 |
15.60 |
| Voc/V |
41.25 |
41.26 |
41.26 |
41.30 |
41.30 |
| Isc/A |
14.39 |
15.05 |
15.82 |
16.59 |
17.26 |
MECHANICAL CHARACTERISTICS
| Solar Cell |
Mono-Crystalline Silicon 182*91mm |
| No. of Cells |
120(6*20) |
| Module Dimensions |
1914*1134*30mm(75.35*44.65*1.18inches) |
| Weight |
26.4kg |
| Front Glass |
2.0mmAR Coating Tempered Glass |
| Back Glass |
2.0mm White Grid-patterned Glass |
| Frame |
Anodized Aluminium Alloy |
| Junction Box |
IP68,3 Bypass Diodes |
| Output Cables |
4mm² , 300mm(+)/300mm(-)
or Customized Length
|
| Connectors |
MC4 |
APPLICATION CONDITIONS
| Maximun System Voltage |
DC1500V |
| Operating Temperature |
-40°C~+85°C |
| Maximun Series Fuse |
25A |
| Safety Protection Class |
ClassⅡ |
| Mechanical Load |
Front side 5400Pa, Backside 2400Pa |
| Refer.Bifaciality Factor |
70%±5% |
TEMPERATURE CHARACTERISTICS
| Temperature Coefficient of Pmax |
-0.34%/°C
-0.25%/°C
+0.04%/°C
42±2°C
|
Applications:
The PERC PV module is suitable for a wide range of applications, including residential, commercial, and industrial settings. It can be used in grid-tied or off-grid systems, and is particularly effective in areas with high temperatures and low light conditions. The high bifaciality factor of the module means that it is able to generate power from both sides, increasing its overall efficiency.
The Sangsolar can be used in a variety of scenarios, such as rooftop installations, ground-mounted arrays, and solar carports. It is also suitable for use in agricultural settings, providing power for irrigation systems and other farm equipment. The module is designed to withstand harsh weather conditions, making it ideal for use in areas with high wind and snow loads.
With its Class II safety protection rating, the Sangsolar is a safe and reliable choice for any solar installation. It is easy to install and maintain, and is backed by a warranty from the manufacturer. Whether you are looking for a high-performance monoperc module for your home or business, or need a reliable source of power for your farm or other outdoor applications, the Sangsolar PERC Solar Module is an excellent choice.
Support and Services:
The PERC Solar Module product technical support and services include:
- Assistance with installation and commissioning
- Troubleshooting and diagnosis of issues
- Technical guidance for optimal performance
- Warranty and claims support
- Maintenance and cleaning recommendations
- Product documentation and manuals
PACKING CONFIGURATION
| Type of Shipping |
Platform Trailer (17.5m) |
Container 40'HC |
| Pieces/Pallet |
36 |
36 |
| Total Amout |
1152 |
864 |
