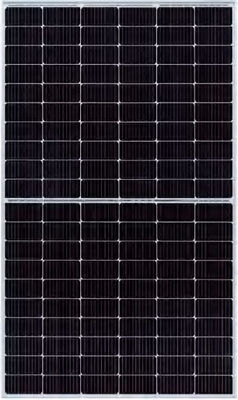

610-640w 2x60 Cells Monocrystalline Solar Module 1500Vdc 3.2 Mm Glass Mono Half Cut Solar Panel

610-640w 2x60 Cells Monocrystalline Solar Module 1500Vdc 3.2 Mm Glass Mono Half Cut Solar Panel

610-640w 2x60 Cells Monocrystalline Solar Module 1500Vdc 3.2 Mm Glass Mono Half Cut Solar Panel

610-640w 2x60 Cells Monocrystalline Solar Module 1500Vdc 3.2 Mm Glass Mono Half Cut Solar Panel

Testing Condition: STC Maximum Power (Pmax/W):	610
Operating Voltage (Vmpp/V):	37.58
Operating Current (Impp/A):	16.10
Module Dimensions:	2172 X 1303 X 33mm (85.51 X 51.30 X 1.30 Inches)
Weight:	34.9kg
Mechanical Load:	Front Side Max. 5400Pa, Rear Side Max. 2400Pa
Power Tolerance(W):	（0，+4.99W）
Maximum System Voltage(V):	1500Vdc (IEC / UL)

Download

Product Details

Cell Type::

Monocrystalline Silicon

Front Glass::

AR Coated 3.2 Mm Tempered Glass

Output Cables::

4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized

Connector::

MC4 Compatible

Place of Origin:

China

Brand Name:

SANGSOLAR

Certification:

CE/TUV/BSP/CSI

Model Number:

SANGSOLAR

Minimum Order Quantity:

Pallet

Price:

Negotiated

Packaging Details:

Carton on Pallet

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

2GW/Year

High Light:

monocrystalline solar module 1500vdc

,

640w monocrystalline solar module

,

640w mono half cut solar panel

Product Description

610-640w 2x60 Cells Efficiency Monocrystalline Solar Module 1500Vdc AR Coated 3.2 Mm Glass

Product Description:

One of the standout features of this solar panel is its connector. It is MC4 compatible, which means that it can be easily integrated into existing solar systems. This makes the panel an ideal choice for those who are looking to upgrade or expand their renewable energy systems.

The junction box of this solar panel is rated IP68, which ensures that it is waterproof and dustproof. This means that it can withstand even the harshest weather conditions, making it a reliable option for those who live in areas with extreme weather.

Another impressive feature of this solar panel is its power tolerance. With a power tolerance of (0, +4.99W), you can be sure that you will get the most out of your solar system. This means that even on cloudy days or during periods of low sunlight, you will still be able to generate power.

The maximum system voltage of this solar panel is 1500Vdc (IEC / UL), which makes it suitable for a wide range of applications. Whether you are looking to power your home or your business, this solar panel will get the job done.

This monocrystalline solar panel is also a mono half cut solar panel, which means that it has been designed to increase efficiency and reduce the risk of hotspots. This makes it an ideal choice for those who are looking to maximize their energy output and reduce their energy costs.

In summary, the 1 Solar Module is a top-of-the-line monocrystalline solar panel that is perfect for residential and commercial applications. With its high-quality monocrystalline silicon cells, MC4 compatible connector, IP68 rated junction box, power tolerance of (0, +4.99W), and maximum system voltage of 1500Vdc (IEC / UL), this solar panel is a reliable and efficient choice for anyone looking to go green.

Features:

Product Name: 1 Solar Module
Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
Connector: MC4 Compatible
Power Tolerance(W): (0,+4.99W)
Junction Box: IP68
Front Glass: AR Coated 3.2 Mm Tempered Glass
450w mono solar panel
mono half cut solar panel

610-640w 2x60 Cells Monocrystalline Solar Module 1500Vdc 3.2 Mm Glass Mono Half Cut Solar Panel 0

ELECTRICAL CHARACTERISTICS

Model/QWBDN120-	610W	615W	620W	625W	630W	635W	640W
Testing Condition: STC Maximum Power (Pmax/W)	610	615	620	625	630	635	640
Operating Voltage (Vmpp/V)	37.58	37.82	38.06	38.30	38.54	38.78	39.01
Operating Current (Impp/A)	16.10	16.13	16.16	16.19	16.22	16.25	16.28
Open-Circuit Voltage (Voc/V)	44.60	44.77	44.95	45.13	45.30	45.48	45.65
Short-Circuit Current (Isc/A)	17.10	17.13	17.16	17.19	17.22	17.25	17.28
Module Eﬃciency (%)	21.55	21.73	21.91	22.08	22.26	22.44	22.61

Pmax Gain	5%	10%	15%	20%	25%
Pmax/W	661	693	724	756	787
Vmpp/V	38.54	38.54	38.56	38.56	38.56
Impp/A	16.38	17.98	18.78	19.61	20.41
Voc/V	45.30	45.30	45.30	45.33	45.33
Isc/A	17.88	18.78	19.71	20.65	21.59

MECHANICAL CHARACTERISTICS

Solar Cell	HJT 210 x 105mm
No. of Cells	120 (2 x 60)
Module Dimensions	2172 x 1303 x 33mm (85.51 x 51.30 x 1.30 inches)
Weight	34.9kg
Front Glass	2.0mmAR Coating Semi-tempered Glass
Back Glass	2.0mm Glazed Semi-tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68, 3 Bypass Diodes
Output Cables	4mm² , 300mm(+)/300mm(-) or Customized Length
Connectors	MC4

610-640w 2x60 Cells Monocrystalline Solar Module 1500Vdc 3.2 Mm Glass Mono Half Cut Solar Panel 1

Applications:

One of the standout features of this solar panel is its front glass. It is AR coated and made of 3.2mm tempered glass, which makes it incredibly durable and resistant to damage. The glass also has anti-reflective properties that help to increase the amount of sunlight that is absorbed by the cells.

The Sangsolar module comes with MC4 compatible connectors, which are the industry standard for solar panel installations. This makes it easy to connect the panel to other components in your solar system, such as inverters and batteries.

The junction box of this solar panel is rated IP68, which means that it is fully protected against dust and water ingress. This makes it suitable for use in a wide range of environments, including harsh outdoor conditions.

The output cables on this solar panel are 4.0mm² and 1200mm in length. They are also customizable, so you can choose the length that works best for your specific installation. The cables are designed to be easy to work with and can be connected to other components quickly and easily.

Overall, the Sangsolar solar module is a versatile and reliable product that can be used in a wide range of applications. It is perfect for residential and commercial installations, as well as for use in off-grid systems. Whether you are looking to power your home or business, or simply want to reduce your carbon footprint, this solar panel half cut is an excellent choice.

APPLICATION CONDITIONS

Maximun System Voltage	DC1500V
Operating Temperature	-40°C~+85°C
Maximun Series Fuse	30A
Safety Protection Class	ClassⅡ
Mechanical Load	Front side 5400Pa, Backside 2400Pa

TEMPERATURE CHARACTERISTICS

Temperature Coeﬃcient of Pmax	-0.34%/°C
Temperature Coeﬃcient of Voc	-0.25%/°C
Temperature Coeﬃcient of Isc	+0.04%/°C
Nominal Module Operating Temperature (NOCT)	42±2°C

Customization:

Brand Name: Sangsolar
Place of Origin: China
Junction Box: IP68
Maximum System Voltage(V): 1500Vdc (IEC / UL)
Front Glass: AR Coated 3.2 Mm Tempered Glass
Cell Type: Monocrystalline Silicon
Power Tolerance(W): (0,+4.99W)

This solar module can be customized to the following power outputs:

500w mono solar panel
400w mono solar panel
300w mono solar panel

Support and Services:

Our 1 Solar Module product comes with comprehensive technical support and services to ensure maximum performance and longevity. Our team of experts is available to provide assistance with installation, operation, and maintenance of the module. We also offer troubleshooting and repair services in the event of any issues with the module. In addition, we provide regular software updates and firmware upgrades to keep the module up-to-date with the latest technology. Our technical support and services are designed to help our customers get the most out of their investment and achieve their sustainability goals.

Packing and Shipping:

Product Packaging:

This Solar Module is carefully packaged in a sturdy cardboard box to ensure safe transportation. The module is wrapped in protective plastic and secured with foam inserts to prevent any damage during shipping.

Shipping:

We offer free standard shipping on all Solar Module orders within the continental United States. Shipping times may vary depending on your location, but we strive to deliver your order within 5-7 business days. For international orders, shipping rates and times may vary.

PACKING CONFIGURATION

Type of Shipping	Platform Trailer (17.5m)	Container 40'HC
Pieces/Pallet	33	33
Total Amout	759	594

FAQ:

Q: What is the brand name of the solar module?

A: The brand name of the solar module is Sangsolar.

Q: Where is the solar module manufactured?

A: The solar module is manufactured in China.

Q: What is the output power of the solar module?

A: The output power of the solar module varies depending on the model, but it ranges from 100W to 400W.

Q: What is the warranty period for the solar module?

A: Please refer to the warranty information provided with the product for details on the warranty period.

Q: Can the solar module be used for residential purposes?

A: Yes, the solar module can be used for both residential and commercial purposes.
