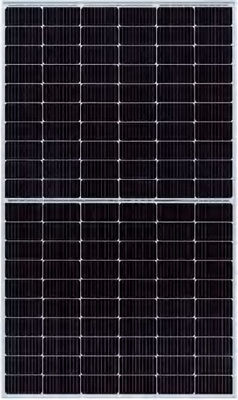

Product Description:
Our solar panel is designed with a high maximum system voltage of 1500Vdc (IEC / UL), ensuring that it can withstand even the harshest weather conditions. The front glass of the panel is made from AR coated 3.2 mm tempered glass, providing excellent durability and protection against external damage.
With a power tolerance of (0,+4.99W), our 500w mono solar panel guarantees consistent energy output, regardless of any minor fluctuations in sunlight. Additionally, the panel can withstand mechanical loads of up to 5400Pa on the front side and 2400Pa on the rear side, making it highly resistant to external stressors such as wind and snow.
Our solar panel comes with an MC4 compatible connector, making it easy to install and integrate into your existing solar system. Whether you're looking to power your home or business, our 550 watt monocrystalline solar panel is the perfect choice for reliable and efficient energy production.
Features:
- Product Name: 1 Solar Module
- Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
- Junction Box: IP68
- Cell Type: Monocrystalline Silicon
- Connector: MC4 Compatible
- Output Cables: 4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized
- Output: 550w mono solar panel, 450w mono solar panel, mono half cut solar panel
ELECTRICAL CHARACTERISTICS
| Model/QWBDN132- |
700W |
705W |
710W |
715W |
720W |
725W |
730W |
|
Testing Condition: STC
Maximum Power (Pmax/W)
|
700 |
705 |
710 |
715 |
720 |
725 |
730 |
| Operating Voltage (Vmpp/V) |
43.00 |
43.23 |
43.46 |
43.68 |
43.91 |
44.13 |
44.35 |
| Operating Current (Impp/A) |
16.28 |
16.31 |
16.34 |
16.37 |
16.40 |
16.43 |
16.46 |
| Open-Circuit Voltage (Voc/V) |
50.31 |
50.51 |
50.71 |
50.91 |
51.11 |
51.31 |
51.71 |
| Short-Circuit Current (Isc/A) |
17.21 |
17.23 |
17.25 |
17.27 |
17.29 |
17.31 |
17.33 |
| Module Efficiency (%) |
22.53 |
22.70 |
22.86 |
23.02 |
23.18 |
23.34 |
23.50 |
| Pmax Gain |
5% |
10% |
15% |
20% |
25% |
| Pmax/W |
735 |
770 |
805 |
840 |
875 |
| Vmpp/V |
43.00 |
43.00 |
43.03 |
43.03 |
43.03 |
| Impp/A |
17.10 |
17.91 |
18.71 |
19.53 |
20.34 |
| Voc/V |
50.31 |
50.31 |
50.33 |
50.33 |
50.33 |
| Isc/A |
17.36 |
18.23 |
18.95 |
19.78 |
20.66 |
MECHANICAL CHARACTERISTICS
| Solar Cell |
HJT 210 x 105mm |
| No. of Cells |
132 (2 x 66) |
| Module Dimensions |
2384 x 1303 x 33mm (93.86 x 51.30 x 1.30 inches) |
| Weight |
38.3kg |
| Front Glass |
2.0mmAR Coating Semi-tempered Glass |
| Back Glass |
2.0mm Glazed Semi-tempered Glass |
| Frame |
Anodized Aluminium Alloy |
| Junction Box |
IP68, 3 Bypass Diodes |
| Output Cables |
4mm² , 300mm(+)/300mm(-) or Customized Length |
| Connectors |
MC4 |
Applications:
One of the main benefits of the Sangsolar 550w mono solar panel is its mechanical load capacity. With a front side maximum load of 5400Pa and a rear side maximum load of 2400Pa, this solar panel can withstand tough weather conditions and high wind speeds. This makes it an ideal choice for areas with extreme weather conditions.
The front glass of the Sangsolar mono half cut solar panel is made of AR coated 3.2mm tempered glass, which provides excellent durability and protection against harsh weather. The tempered glass also enhances the efficiency of the solar panel by allowing maximum sunlight to pass through.
The power tolerance of the Sangsolar 550 watt monocrystalline solar panel is within (0,+4.99W), which ensures that the panel performs optimally and consistently in different weather conditions. This makes it an excellent choice for areas with varying weather patterns.
The Sangsolar 550w mono solar panel comes with output cables that are 4.0mm² and 1200mm (+) and (-) in length. The length of the cables can be customized to meet specific installation requirements. This feature makes it easy to install the solar panel in different settings, including commercial and residential installations.
The junction box of the Sangsolar mono half cut solar panel is IP68 rated, which provides optimal protection against dust and water. This makes it an excellent choice for areas with high humidity and dust levels.
The Sangsolar 550 watt monocrystalline solar panel is suitable for various applications, including residential and commercial installations. It can be used to power homes, schools, hospitals, and other facilities that require reliable and efficient solar power. Its high power output and advanced technology make it an excellent choice for areas with high energy demands.
In conclusion, the Sangsolar 550w mono solar panel is a high-quality solar panel that offers excellent performance and durability. Its advanced technology and mechanical load capacity make it an excellent choice for various applications. Whether you are looking for a solar panel for residential or commercial installations, the Sangsolar mono half cut solar panel is an excellent choice that provides reliable and efficient solar power.
APPLICATION CONDITIONS
| Maximun System Voltage |
DC1500V |
| Operating Temperature |
-40°C~+85°C |
| Maximun Series Fuse |
30A |
| Safety Protection Class |
ClassⅡ |
| Mechanical Load |
Front side 5400Pa, Backside 2400Pa |
TEMPERATURE CHARACTERISTICS
| Temperature Coefficient of Pmax |
-0.34%/°C |
| Temperature Coefficient of Voc |
-0.25%/°C |
| Temperature Coefficient of Isc |
+0.04%/°C |
| Nominal Module Operating Temperature (NOCT) |
42±2°C
|
Customization:
Customize your Sangsolar Mono Solar Panel with the following options:
- Brand Name: Sangsolar
- Place of Origin: China
- Junction Box: IP68
- Output Cables: 4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized
- Maximum System Voltage(V): 1500Vdc (IEC / UL)
- Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
- Front Glass: AR Coated 3.2 Mm Tempered Glass
Choose the customization options that best suit your needs for your Sangsolar Mono Half Cut Solar Panel or 550 Watt Monocrystalline Solar Panel.
Support and Services:
Our 1 Solar Module product comes with a comprehensive technical support and service package, including:
- Installation guidance and support
- On-site technical assistance
- Troubleshooting and issue resolution
- Warranty and repair services
- Product training and education
- Remote monitoring and performance analysis
We are committed to providing our customers with the highest level of technical support and services to ensure optimal performance and longevity of our solar modules.
Packing and Shipping:
Product Packaging:
- The solar module will be securely packaged in a cardboard box.
- The box will be wrapped with bubble wrap to protect the product from damage during shipping.
- The box will also include installation instructions and a warranty card.
Shipping:
- The solar module will be shipped via a reputable courier service.
- The product will be shipped within 2 business days of receiving the order.
- A tracking number will be provided to the customer once the product has been shipped.
- The estimated delivery time will depend on the customer's location.
- The customer should inspect the product upon delivery and report any damage to the courier immediately.
FAQ:
Q: What is the brand name of the solar module?
A: The brand name of the solar module is Sangsolar.
Q: Where is the solar module manufactured?
A: The solar module is manufactured in China.
Q: What is the power output of the solar module?
A: The power output of the solar module varies depending on the model, please refer to the product specifications for more information.
Q: Can the solar module be used for residential purposes?
A: Yes, the solar module can be used for both residential and commercial purposes.
Q: What is the warranty period for the solar module?
A: Please refer to the warranty information provided with the product for more information on the warranty period.
