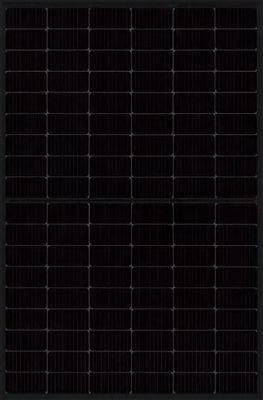

420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel
  • 420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel
  • 420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel
  • 420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel
  • 420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel

420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel

Power: 420W
Operating Voltage (Vmpp/V): 33.69
Operating Current (Impp/A): 12.47
Module Efficiency (%): 21.51
Module Dimensions: 1722 X 1134 X 30mm (67.80 X 44.65 X 1.18 Inches)
Weight: 23kg
Cell Type: Monocrystalline Silicon
Output Cables: 4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized
Download

Product Details

Maximum System Voltage(V)::
1500Vdc (IEC / UL)
Connector::
MC4 Compatible
Junction Box::
IP68
Power Tolerance(W)::
(0,+4.99W)
Highlight::

hjt solar module 1200mm

,

1500vdc monocrystalline silicon solar panel

,

445w hjt solar module

Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV/BSP/CSI
Model Number:
SANGSOLAR
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
Highlight:

hjt solar module 1200mm

,

1500vdc monocrystalline silicon solar panel

,

445w hjt solar module

Product Description

Product Description:

This solar module comes equipped with MC4 compatible connectors, making it easy to install and integrate into your existing solar energy system. The output cables measure 4.0mm² and are 1200mm long, with the option to customize the length to fit your specific needs. This flexibility makes it easy to install the panel in a variety of locations and orientations.

With a power tolerance of (0, +4.99W), this 550w mono solar panel is capable of producing up to 550 watts of power, making it one of the most efficient solar panels on the market. It is also available in a 450 watt mono solar panel version, providing even more options for your energy needs.

The maximum system voltage for this solar module is 1500Vdc (IEC / UL), providing a safe and reliable energy solution for your home or business. The front glass is AR coated 3.2 mm tempered glass, ensuring durability and long-lasting performance in even the toughest environments.

Overall, our 550w mono solar panel is the perfect choice for anyone looking to harness the power of the sun to meet their energy needs. With its high efficiency rate, customizable output cables, and durable construction, this solar module is an excellent investment for anyone looking to reduce their energy costs and carbon footprint.



Features:

  • Product Name: 1 Solar Module
  • Junction Box: IP68
  • Output Cables: 4.0mm², 1200mm (+), 1200mm (-), Length Can Be Customized
  • Cell Type: Monocrystalline Silicon
  • Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
  • Front Glass: AR Coated 3.2 Mm Tempered Glass
  • Features: mono half cut solar panel, mono solar panel, solar panel half cut


Applications:

The Sangsolar Solar Module is a high-quality solar panel originating from China. It is made with AR Coated 3.2mm tempered glass, which ensures durability and longevity. The panel is equipped with MC4 compatible connectors, which are widely used in the solar industry and make installation easier.

As a Mono Half Cut Solar Panel, it is made with monocrystalline silicon cells that have been cut in half. This technology increases efficiency and reduces the risk of energy loss. The Sangsolar Solar Module has a power output of 400W, with a power tolerance of (0,+4.99W). This makes it one of the most efficient solar panels on the market.

The panel comes with output cables that are 4.0mm² and 1200mm in length. The length can be customized to suit different needs. The Sangsolar Solar Module is a versatile product that can be used in many different scenarios. Here are some product application occasions and scenarios:

  • Residential Solar Systems: The Sangsolar Solar Module is ideal for residential solar systems. It can be used to power homes, apartments, and other residential buildings. Its high efficiency and power output make it a great choice for homeowners who want to reduce their energy bills and their carbon footprint.
  • Commercial Solar Systems: The Sangsolar Solar Module is also suitable for commercial solar systems. Its high power output and efficiency make it a great choice for businesses, offices, and other commercial buildings. It can help businesses save money on energy costs while also reducing their environmental impact.
  • Off-Grid Solar Systems: The Sangsolar Solar Module is perfect for off-grid solar systems. Its high power output and efficiency make it a great choice for remote locations where there is no access to the power grid. It can be used to power cabins, RVs, boats, and other off-grid locations.
  • Solar Farms: The Sangsolar Solar Module is also suitable for solar farms. Its high efficiency and power output make it a great choice for large-scale solar projects. Its half cut cell solar panels technology ensures maximum energy production even in low light conditions.

The Sangsolar Solar Module is a reliable and efficient solar panel that can be used in many different scenarios. Its half cut cell solar panels technology and high power output make it a top choice for homeowners, businesses, and solar installers.420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel 0

ELECTRICAL CHARACTERISTICS
Model/QWBDN120- 420W 425W 430W 435W 440W 445W

Testing Condition: STC

Maximum Power (Pmax/W)

420 425 430 435 440 445
Operating Voltage (Vmpp/V) 33.69 33.79 33.89 33.99 34.09 34.19
Operating Current (Impp/A) 12.47 12.58 12.69 12.80 12.91 13.02
Open-Circuit Voltage (Voc/V) 40.05 40.18 40.31 40.44 40.57 40.70
Short-Circuit Current (Isc/A) 13.22 13.27 13.32 13.37 13.42 13.47
Module Efficiency (%) 21.51 21.77 22.02 22.28 22.54 22.80



Pmax Gain 5% 10% 15% 20% 25%
Pmax/W 456.7 478.5 500.2 522 543.7
Vmpp/V 34.01 34.01 34.01 34.03 34.03
Impp/A 13.43 14.07 14.71 15.34 15.98
Voc/V 40.57 40.57 40.97 40.97 40.97
Isc/A 13.45 13.98 14.67 15.19 15.75

MECHANICAL CHARACTERISTICS

Solar Cell HJT 182 x 91mm
No. of Cells 108 (2 x 54)
Module Dimensions 1722 x 1134 x 30mm (67.80 x 44.65 x 1.18 inches)
Weight 23kg
Front Glass 2.0mmAR Coating Semi-tempered Glass
Back Glass 1.6mm Heat Strengthened Glass
Frame Anodized Aluminium Alloy (Black)
Junction Box IP68, 3 Bypass Diodes
Output Cables 4mm² , 300mm(+)/300mm(-) or Customized Length
Connectors MC4

420-445w 2x54 Cells HJT Solar Module 1200mm Power Tolerance 1500Vdc Monocrystalline Silicon Solar Panel 1

APPLICATION CONDITIONS

Maximun System Voltage DC1500V
Operating Temperature -40°C~+85°C
Maximun Series Fuse 30A
Safety Protection Class ClassⅡ
Mechanical Load Front side 5400Pa, Backside 2400Pa




TEMPERATURE CHARACTERISTICS

Temperature Coefficient of Pmax -0.34%/°C
Temperature Coefficient of Voc -0.25%/°C
Temperature Coefficient of Isc +0.04%/°C
Nominal Module Operating Temperature (NOCT) 42±2°C

Support and Services:

The 1 Solar Module product comes with technical support and services to ensure optimal performance and customer satisfaction. Our expert team provides assistance with installation, operation, and maintenance of the solar module system. Additionally, we offer troubleshooting and repair services to address any issues that may arise. Our technical support and services are designed to minimize downtime and maximize energy production. Contact us for more information on our comprehensive support and services for the 1 Solar Module.



Packing and Shipping:

Product: 1 Solar Module

Dimensions: 65 x 39 x 1.2 inches

Weight: 50 lbs

Package Contents:

  • 1 Solar Module
  • Junction box with MC4 connector
  • Installation manual

Shipping:

  • Ships within 3-5 business days
  • Free standard shipping within the United States
  • International shipping available for an additional fee


PACKING CONFIGURATION

Type of Shipping Platform Trailer (17.5m) Container 40'HC
Pieces/Pallet 33 33
Total Amout 759 594
