Products Details

Home > products >

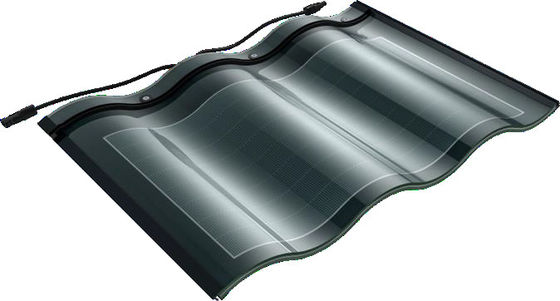

CIGS CELLS 25w Solar Tiles Featuring Weather Resistant Tempered Glass Easy Installation For BIPV Solar Solutions

CIGS CELLS 25w Solar Tiles Featuring Weather Resistant Tempered Glass Easy Installation For BIPV Solar Solutions

CIGS CELLS 25w Solar Tiles Featuring Weather Resistant Tempered Glass Easy Installation For BIPV Solar Solutions

CIGS CELLS 25w Solar Tiles Featuring Weather Resistant Tempered Glass Easy Installation For BIPV Solar Solutions

Power:	25w
Maximum Power Point Voltage Vpm [V:	8.10
Maximum Power Point Current Ipm [A:	3.10
Efficiency:	8.5%
Product Appearance Dimension - L * W * H [mm:	72150033
Unit Component Weight [kg:	22(±0.5)
Material:	Tempered Glass
Durability:	Weather Resistant

Download

Product Details

Installation::

Easy To Install

Product Type::

Solar Tiles

Shape::

Rectangular

Certifications::

UL Listed, CE Certified

Place of Origin:

China

Brand Name:

SANGSOLAR

Certification:

CE/TUV

Model Number:

SANGSOLAR

Minimum Order Quantity:

100m2

Price:

Negotiated

Packaging Details:

Wooden Box

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

10000pcs/Month

High Light:

32w solar tiles

,

cigs solar tiles

,

cigs solar roof tiles

Product Description

Product Description:

Installation of the BIPV Solar Tiles is easy and efficient, making the transition to renewable energy hassle-free. The tiles can be easily integrated into existing roofing materials, reducing the need for costly and time-consuming retrofits. Additionally, the modular design of the tiles allows for easy customization of the solar array to fit the specific needs of the building.

These solar tiles are UL Listed and CE Certified, ensuring that they meet the highest safety and quality standards. The BIPV Solar Tiles are also a sustainable choice, as they are made from recyclable materials and are designed to be long-lasting.

The BIPV Solar Tiles are a great alternative to traditional solar panels, especially in situations where the aesthetics of the building are a top priority. Unlike traditional solar panels, the BIPV Solar Tiles are designed to blend seamlessly into the building's structure, providing a sleek and modern look. They are also more durable than traditional solar panels, as they are made from tempered glass.

Overall, the BIPV Solar Tiles are a top-of-the-line product for those looking to incorporate renewable energy into their building. With their easy installation, certifications, and sustainable design, they are sure to provide reliable and long-lasting renewable energy for years to come. These solar tiles can be a perfect add-on to a Folding Solar Panel Kit or 3D PVC Wall Panels, making BIPV Building Integrated Photovoltaics a reality.

triple-quadruple generating tiles

1. Electrical performance parameters at STC

1) Zero carbon black version Sanqu power

Product technical parameters

Product Model Number	P0101025	P0101028	P0101030	P0101032
Maximum power of single product Pm [W]	25	28	30	32
Maximum power per square meter - Pm [W]	86	96	103	110
Open circuit voltage Voc [V]	10.3	10.5	10.6	10.8
Short circuit current Ic [A]	3.8	3.90	4.0	4.1
Maximum power point voltage Vpm [V]	8.10	8.4	8.60	8.90
Maximum power point current Ipm [A]	3.10	3.4	3.5	3.6
Product appearance dimension - L * W * H [mm]	72150033(±1)(Height is the product side curve arch height)
Component thickness [mm]	8(±1)
Unit component weight [kg]	6.5(±0.5)
Component weight per square meter [kg]	22(±0.5)
Linear power guarantee (years)	25
Front plate	Super white tempered glass
Backplane	Super white tempered glass
Borders	Aluminum
Junction Box	IP67, MC4 connector
Colors	Zero carbon black

Features:

Product Name: BIPV Solar Tiles
Efficiency: 8.5%
Certifications:
- UL Listed
- CE Certified
Product Type: Solar Tiles
Installation: Easy To Install
Material: Tempered Glass

These BIPV Solar Tiles are perfect for your home solar energy system. They are designed to be easy to install and are made of tempered glass. With an efficiency of 8.5%, they are an excellent choice for BIPV building integrated photovoltaics. These solar tiles use IBC cell technology and are UL Listed and CE Certified.

Technical Parameters:

PHYSICAL PARAMETERS
ProductModel	HW-MQSB-V2
Chip type	copper,indium,galliumandselenium
Specification	720(length)500(width)32(archheight)mm
Weight	6.6(±0.5)kg
Connector	MC4
Warranty	25 years

ELECTRICAL PERFORMANCE PARAMETERS
Color	Black	Red	Green
Open-circuitvoltage	10.8V	10.5V	10.5V
Power	32W	28W	28W
PMPPCurrent	3.6A	3.4A	3.4A
Shortcircuitcurrent	4.1A	3.9A	3.9A
PMPPtimevoltage	8.9V	8.4V	8.4V

PERFORMANCE LEVEL
Load rating	5400pa
Waterproof grade	IP67
Fire rating	A
Hailresistancelevel	Level4(ANSIFM4473)
Workingtemperature	-40℃~+85℃
Operatinghumidity	0~80%
The over all product warranty is10 years,and the power guarantee by the 25th year,the power generation shall not be less than 85% of the nominal power.


BeijingShanHuInternationalTechnologyCo.,Ltd
Address:Room130,Apartment1,1stfloor,Building31,NanhaiJiayuanLiu li,YinghaiTown,DaxingDistrict,Beijing Email:sales.manager@sangsolar.com https://www.sangsolar.com

Applications:

These solar tiles are not only functional, but also aesthetically pleasing. Their sleek black color allows them to blend in seamlessly with any roof, adding a modern touch to any home or building. In addition to their visual appeal, these solar tiles are also highly customizable. They can be tailored to fit any roof size or shape, making them a versatile choice for any project.

The Sangsolar BIPV Solar Tiles are perfect for a variety of applications. For those looking for a portable solar energy solution, the folding solar panel kit is a great option. This kit allows for easy transportation and setup, making it perfect for outdoor activities or emergency situations.

For those looking to power their home with solar energy, the Sangsolar BIPV Solar Tiles can be integrated into a home solar energy system. This system can help reduce electricity bills and decrease carbon footprints, while providing a reliable and sustainable energy source for daily use.

These solar tiles are also ideal for commercial applications. They can be used to power businesses, schools, or government buildings, helping to reduce operating costs and increase sustainability. Their customizable design allows them to fit seamlessly into any building's architecture, providing both functionality and aesthetic appeal.

In conclusion, the Sangsolar BIPV Solar Tiles are a highly efficient, durable, and customizable solar energy solution. Their versatility makes them suitable for a variety of applications, from portable solar panel kits to home and commercial solar energy systems. With their sleek black design and weather-resistant material, these solar tiles are both functional and visually appealing, making them a great choice for any solar energy project.

Customization:

Our product customization services allow you to tailor our solar tiles to your specific needs. You can choose from a range of colors and sizes to ensure that your solar roof tiles blend seamlessly with your existing roof. We can also provide custom installation solutions and guidance to ensure that your Black Solar PV Panels are installed correctly and efficiently.

Packing and Shipping:

Product Packaging:

BIPV Solar Tiles will be packaged in sturdy boxes with protective materials to ensure safe delivery.
Each box will contain a set of BIPV Solar Tiles along with installation instructions.

Shipping:

BIPV Solar Tiles will be shipped through a reliable courier service.
Shipping charges may vary based on the destination and quantity of the order.
Customers will receive a tracking number to monitor the shipment status and expected delivery date.

FAQ:

Q: What is Sangsolar BIPV Solar Tiles?

A: Sangsolar BIPV Solar Tiles are solar tiles that serve as roofing material for buildings. These tiles are made of premium-quality materials and come with integrated solar cells that generate electricity from the sun's energy.

Q: Where are Sangsolar BIPV Solar Tiles manufactured?

A: Sangsolar BIPV Solar Tiles are manufactured in China, adhering to strict quality standards and using advanced production techniques.

Q: What are the benefits of using Sangsolar BIPV Solar Tiles?

A: Sangsolar BIPV Solar Tiles offer several benefits, including:

Reduced energy costs through the generation of free electricity from the sun
Improved environmental sustainability by reducing the carbon footprint of buildings
Increased property value through the addition of a high-quality roofing material that also generates renewable energy

Q: Can Sangsolar BIPV Solar Tiles be used on any type of building?

A: Sangsolar BIPV Solar Tiles can be used on a variety of building types, including residential, commercial, and industrial buildings. However, it is recommended that you consult with a professional to determine if these tiles are suitable for your specific building and location.

Q: What is the lifespan of Sangsolar BIPV Solar Tiles?

A: Sangsolar BIPV Solar Tiles are designed to last for more than 25 years, making them a reliable and long-lasting roofing option for your building.
