Products Details

Home > products >

N-TYPE 65W Rectangular Black BIPV Solar Panel Roof Tiles Weather Resistant Tempered Glass

N-TYPE 65W Rectangular Black BIPV Solar Panel Roof Tiles Weather Resistant Tempered Glass

N-TYPE 65W Rectangular Black BIPV Solar Panel Roof Tiles Weather Resistant Tempered Glass

N-TYPE 65W Rectangular Black BIPV Solar Panel Roof Tiles Weather Resistant Tempered Glass

Power:	65w
Maximum Power Of Single Product Pm [W:	25.82
Maximum Power Point Current Ipm [A:	2.52
Efficiency:	8.5%
Product Appearance Dimension - L * W * H [mm:	146043521
Unit Component Weight [kg:	12(±0.5)
Color:	Black
Durability:	Weather Resistant

Download

Product Details

Product Type::

Solar Tiles

Certifications::

UL Listed, CE Certified

Shape::

Rectangular

Material::

Tempered Glass

Place of Origin:

China

Brand Name:

SANGSOLAR

Certification:

CE/TUV

Model Number:

SANGSOLAR

Minimum Order Quantity:

100m2

Price:

Negotiated

Packaging Details:

Wooden Box

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

10000pcs/Month

High Light:

bipv solar panel roof tiles

,

solar panel roof tiles weather resistant

,

65w solar roof tiles

Product Description

Product Description:

Our solar tiles are easy to install, making it a great option for both residential and commercial properties. These black solar PV panels are designed to fit in seamlessly with your existing roof tiles or shingles, making them an excellent choice for those who want to generate clean energy without sacrificing aesthetic appeal. The rectangular shape of the solar tiles ensures that they can be installed in tight spaces and can easily accommodate different roof designs.

Our solar tiles are highly efficient, with an efficiency rating of 8.5%. This means that they can convert a significant amount of sunlight into electricity, reducing your reliance on grid power and helping you save money on energy bills. The solar tile IBC cell technology used in our product ensures that you get the maximum output from your solar system, so you can enjoy the benefits of renewable energy without any hassle.

Our solar tiles are also incredibly durable, making them ideal for use in all weather conditions. They are designed to withstand harsh weather conditions such as rain, snow, and hail, ensuring that they will last for years to come. The weather-resistant feature of the solar tiles ensures that they can continue to generate electricity even during bad weather, so you don't have to worry about power outages during storms or other natural disasters.

Overall, our BIPV Solar Tiles are an excellent choice for anyone who wants to generate clean energy while also enhancing the aesthetic appeal of their property. With easy installation, high efficiency, a rectangular shape, and weather-resistant durability, our solar tiles are the ideal solution for all your energy needs. Get in touch with us today to learn more about our product and how it can benefit you.

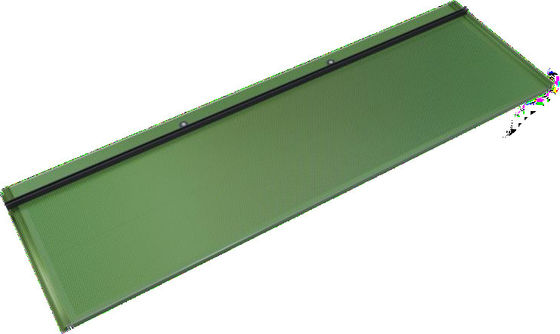

Emerald green plane

power generation tile A, product appearance

Features:

Product Name: BIPV Solar Tiles
Shape: Rectangular
Material: Tempered Glass
Durability: Weather Resistant
Certifications: UL Listed, CE Certified
Product Type: Solar Tiles
Compatible with 3D PVC Wall Panels
Can be used with Grid Interconnected Solar Pv System
Uses solar tile IBC cell technology

Technical Parameters:

Product Model Number	P0203065	P0203070	P0203075	P0203080	P0203085
Maximum power of single product Pm [W]	65	70	75	80	85
Maximum power per square meter - Pm [W]	130	140	150	160	170
Open circuit voltage Voc [V]	30.92	30.97	31.01	31.06	31.1
Short circuit current Ic [A]	2.78	2.96	3.15	3.33	3.52
Maximum power point voltage Vpm [V]	25.82	26	26.25	26.46	26.68
Maximum power point current Ipm [A]	2.52	2.69	2.86	3.02	3.19
Product appearance dimension - L * W * H [mm]	146043521(±1) (Height refers to the height of the product's border)
Component thickness [mm]	7.5(±1)
Unit component weight [kg]	12(±0.5)
Component weight per square meter [kg]	24(±0.5)
Front plate	Super white tempered glass
Backplane	Super white tempered glass
Borders	Aluminum
Junction Box	IP67, MC4 connector
Colors	Emerald green

Maximum rated parameters

Maximum system voltage [V]

DC 1000(IEC)

Maximum fuse rated current [A]

20

Maximum front static load [Pa]

5400

Operating temperature [°C]

-40～+85

Hail resistance

Maximum diameter 25mm Impact speed 23m/s

Fire Resistance Rating

A

application level

A

temperature parameters

NOCT

45℃

Peak power (Pmpp) temperature coefficient

-0.34%/℃

Open circuit voltage (Voc) temperature coefficient

-0.27%/℃

Short circuit current (Isc) temperature coefficient

0.04%/℃

Tip.

1. STC: irradiance 1000W/㎡; AM1.5; Ambient temperature 25 ℃; Test according to EN60904-3.

2. NMOT: irradiance 800W/㎡; Wind speed 1m/s; The ambient temperature is 20 ℃.

3. Power test uncertainty: ± 7%. Test tolerance of Voc [V], Isc [A], Vm [V], Im [A]: ± 7%.

4. Due to continuous technical and product innovation, research and product upgrades, the contents of this product specification are subject to change without prior notice. These contents may have a slight deviation, and its content is not guaranteed; these data are not for a single component, they are not part of the sale, they are only used for comparison between different models of components; the technical specifications of the final interpretation of the right of Beijing Shanhu International Technology Co.

Applications:

The Sangsolar BIPV Solar Tiles are designed to be easy to install, making them a great choice for both residential and commercial buildings. They can be installed on both new and existing roofs, and they come in a range of sizes and colors to suit different types of roofs and buildings. One of the best things about these solar tiles is that they are highly customizable. Customers can choose from a range of solar tile customized options, including color, size, and shape.

The Sangsolar BIPV Solar Tiles are ideal for a range of different product application occasions and scenarios, including residential homes, commercial buildings, and industrial structures. They can be used to provide energy for a range of different purposes, including lighting, heating, and air conditioning. They are also ideal for powering small devices and appliances, such as laptops, mobile phones, and other electronic devices.

In addition to the BIPV Solar Tiles, Sangsolar also offers a range of other solar products, including folding solar panel kits and black solar PV panels. These products are designed to be highly efficient and durable, making them ideal for a range of different applications and scenarios. Whether you are looking for a reliable source of renewable energy for your home or business, or you need a portable solar solution for outdoor activities, Sangsolar has the perfect product for you.

Customization:

Our customization services cater to your unique requirements. We can tailor our BIPV Solar Tiles to fit into a Grid Interconnected Solar Pv System. Additionally, we offer Folding Solar Panel Kits for easy portability.

Packing and Shipping:

Product Packaging:

The BIPV Solar Tiles are carefully packaged to ensure safe delivery. Each tile is wrapped in protective material and placed in a sturdy box with sufficient padding to prevent any damage during transit. The boxes are then labeled with the product details and handling instructions for easy identification and handling.

Shipping:

We offer domestic and international shipping for the BIPV Solar Tiles. The shipping cost will be calculated based on the weight and destination of the shipment. Please note that additional customs duties and taxes may apply for international shipments and are the responsibility of the buyer. We strive to ship all orders within 2-3 business days of receiving payment and provide tracking information for the convenience of our customers.

FAQ:

Q: What is Sangsolar BIPV Solar Tiles?

A: Sangsolar BIPV Solar Tiles are a type of building-integrated photovoltaic (BIPV) product that can be used as roofing tiles. They are designed to generate electricity from the sun and can be used in place of traditional roofing tiles.

Q: Where are Sangsolar BIPV Solar Tiles made?

A: Sangsolar BIPV Solar Tiles are made in China.

Q: How do Sangsolar BIPV Solar Tiles generate electricity?

A: Sangsolar BIPV Solar Tiles contain photovoltaic cells that convert sunlight into electricity. This electricity can then be used to power your home or business or can be sold back to the grid.

Q: Can Sangsolar BIPV Solar Tiles be used in any climate?

A: Sangsolar BIPV Solar Tiles are designed to work in a variety of climates and can be used in both hot and cold environments. They are also designed to withstand wind, rain, and snow.

Q: How do Sangsolar BIPV Solar Tiles compare to traditional solar panels?

A: Sangsolar BIPV Solar Tiles are designed to blend in with your existing roof, making them a more aesthetically pleasing option than traditional solar panels. They are also more durable than traditional solar panels and can be used as roofing tiles, providing additional benefits such as insulation and protection from the elements.
