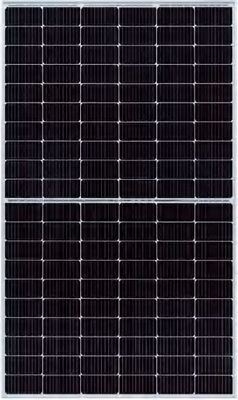

Product Description:
The PERC Solar Module features output cables with a diameter of 4mm2 and a length of 300mm(+)/300mm(-), which can be customized to meet
specific requirements. The cables are designed to deliver maximum power transfer from the solar panel to the solar charge controller.
The junction box of the PERC Solar Module is IP68 rated, which ensures that it is completely protected against dust and water ingress. The junction box is also equipped with 3 bypass diodes that prevent hot spots and improve the overall performance of the solar panel.
The front glass of the PERC Solar Module is made of AR coating tempered glass, which enhances the light transmission and reduces reflection. This results in higher energy production and better performance of the solar panel.
The PERC Solar Module is also equipped with MC4 connectors, which are widely used in the solar industry for their reliability and durability. These connectors are designed to ensure a secure and stable connection between the solar panel and the solar charge controller.
The PERC Solar Module is designed to operate in extreme temperatures, ranging from -40°C to +85°C. This makes it suitable for use in a wide range of environments and conditions.
The PERC Solar Module is a smart and efficient solution that can be used with an intelligent solar charge controller to optimize energy production and reduce energy costs. The intelligent solar charge controller ensures that the solar panel operates at its maximum efficiency, while protecting it from overcharging, over-discharging, and other potential issues.
The PERC Solar Module is a high-quality product that is built to last. It is a black solar PV panel that can withstand harsh weather conditions and deliver reliable performance for many years to come.
Features:
- Product Name: PERC Solar Module
- Connectors: MC4
- Back Glass: 1.6mm Black Grid-patterned Glass
- Junction Box: IP68,3 Bypass Diodes
- Front Glass: AR Coating Tempered Glass
- Operating Temperature: -40°C~+85°C
This PERC Solar Module is perfect for your Home Solar System Kits. With its MC4 connectors and 1.6mm Black Grid-patterned Glass back glass, it's a reliable and efficient source of energy. The AR Coating Tempered Glass front glass ensures durability and longevity. Additionally, the IP68 rated Junction Box with 3 Bypass Diodes helps to ensure optimal performance. Operating temperatures range from -40°C to +85°C, making it suitable for various weather conditions. Our Black Solar PV Panels are the perfect addition to intelligent solar charge controllers.
Electrical Characteristics (STC: E=1000W/m² - Tcell=25°C - AM1.5 NOCT: E=800W/m² - T=20°C - v=1m/s BiFi30: 30% irradiance ratio)
| Module Type |
EGE-485W-132M(GM10) |
EGE-490W-132M(GM10) |
EGE-495W-132M(GM10) |
EGE-500W-132M(GM10) |
EGE-505W-132M(GM10) |
| |
STC |
NOCT |
BiFi30 |
STC |
NOCT |
BiFi30 |
STC |
NOCT |
BiFi30 |
STC |
NOCT |
BiFi30 |
STC |
NOCT |
BiFi30 |
| Power output (Pmax) |
485 W |
366.10 W |
586.85 W |
490 W |
369.90 W |
592.90 W |
495 W |
373.60 W |
598.95 W |
500 W |
377.40 W |
605.00 W |
505 W |
381.20 W |
611.05 W |
| Maximumpowervoltage(Vmp) |
37.81 V |
35.10 V |
37.81 V |
37.99 V |
35.30 V |
37.99 V |
45.46 V |
35.40 V |
38.17 V |
38.35 V |
35.60 V |
38.35 V |
38.53 V |
35.70 V |
38.53 V |
| Maximumpowercurrent(Imp) |
12.83 A |
10.43 A |
15.52 A |
12.90 A |
10.49 A |
15.61 A |
13.86 A |
10.55 A |
15.69 A |
13.04 A |
10.61 A |
15.78 A |
13.11 A |
10.68 A |
15.86 A |
| Open circuit voltage (Voc) |
45.20 V |
42.50 V |
45.20 V |
45.33 V |
42.70 V |
45.33 V |
38.17 V |
42.80 V |
45.46 V |
45.59 V |
42.90 V |
45.59 V |
45.72 V |
43.00 V |
45.72 V |
| Short circuit current (Isc) |
13.72 A |
11.07 A |
16.60 A |
13.79 A |
11.12 A |
16.68 A |
12.97 A |
11.18 A |
16.77 A |
13.93 A |
11.23 A |
16.85 A |
14.01 A |
11.30 A |
16.95 A |
| Bifaciality Factor |
|
|
|
|
|
|
|
80 % ± 10 % |
|
|
|
|
|
|
| Power tolerance |
|
|
|
|
|
|
|
0~+5 W |
|
|
|
|
|
|
|
| Module efficiency |
|
20.42 % |
|
|
20.64 % |
|
|
20.85 % |
|
|
21.06 % |
|
|
21.27 % |
|
Applications:
Home Solar System Kits: The SANGSOLAR PERC Solar Module is a perfect choice for powering home solar system kits. The solar module is made of mono-crystalline silicon measuring 182*91mm and has a high conversion efficiency rate of up to 20.4%. The anodized aluminum alloy frame is durable and can withstand mechanical loads of up to 5400Pa on the front side and 2400Pa on the backside. The junction box is IP68 rated and has 3 bypass diodes that ensure maximum power output even in low light conditions. Homeowners can enjoy stable and efficient solar energy for their homes with SANGSOLAR PERC Solar Module.
Intelligent Solar Charge Controller: The SANGSOLAR PERC Solar Module is also suitable for intelligent solar charge controller applications. The solar module has an operating temperature range of -40°C~+85°C, making it suitable for harsh weather conditions. The high conversion efficiency rate of the solar module ensures that the solar charge controller gets enough power to charge batteries and power other devices. With SANGSOLAR PERC Solar Module, users can enjoy reliable and efficient solar energy for their charging needs.
Industrial Solar Energy Systems: SANGSOLAR PERC Solar Module is also suitable for industrial solar energy systems. The solar module has a high mechanical load capacity, making it suitable for industrial applications. The high conversion efficiency rate of the solar module ensures maximum power output for powering industrial devices. The anodized aluminum alloy frame is durable and can withstand harsh weather conditions, making it suitable for outdoor industrial applications.
Customization:
Looking for customized PERC solar modules? Look no further than Sangsolar! Our modules are made in China and feature mono-crystalline silicon 182*91mm solar cells, with a front side mechanical load of 5400Pa and a back side mechanical load of 2400Pa. The back glass is 1.6mm black grid-patterned glass, and the connectors are MC4.
For added safety, our modules are Class Ⅱ protected. And if you need a little extra help setting up your solar system, we offer emergency solar power kits and AC DC hybrid solar charge controllers.
Packing and Shipping:
Product Packaging:
- The PERC Solar Module will be carefully packed in a sturdy cardboard box.
- The box will be labeled with the product name, quantity, and handling instructions.
- All necessary installation instructions and documentation will be included in the box.
Shipping:
- Shipping will be handled by a reliable carrier with tracking information provided.
- The product will be shipped within 2 business days of order confirmation.
- The product will be insured for the full value of purchase during shipping.
FAQ:
Q: What is the brand name of the solar module product?
A: The brand name of the solar module product is Sangsolar.
Q: Where is the Sangsolar solar module product manufactured?
A: The Sangsolar solar module product is manufactured in China.
Q: What is the power output of the Sangsolar solar module?
A: The power output of the Sangsolar solar module can vary based on the specific model, but it typically ranges from 250 watts to 400 watts.
Q: What is the warranty of the Sangsolar solar module?
A: Warranty information is not included in this list of frequently asked questions. Please refer to the product documentation or contact the manufacturer for warranty information.
Q: Is the Sangsolar solar module compatible with other solar energy systems?
A: The Sangsolar solar module can be compatible with other solar energy systems. Please consult with a professional installer for specific compatibility questions and installation instructions.
