Product Description:

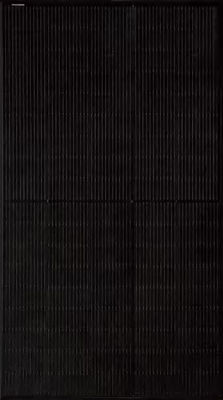

The PERC Solar Module is a high-quality solar panel designed for efficient energy conversion. It features a mono-crystalline silicon solar cell that measures 182*91mm, which allows for maximum sunlight absorption. The PERC Solar Module is also equipped with a 1.6mm black grid-patterned back glass that provides durability and protection from the elements. In terms of safety, the PERC Solar Module has a Safety Protection Class of Class Ⅱ, ensuring that it is safe to use and handle. It is also designed with mechanical load considerations in mind, with a front side load tolerance of 5400Pa and a back side load tolerance of 2400Pa. The PERC Solar Module comes with output cables that measure 4mm2 and have a length of 300mm(+)/300mm(-), which can also be customized to suit your specific needs. This product is perfect for use with an AC DC hybrid solar charge controller or an intelligent solar charge controller, ensuring efficient energy conversion and management. Overall, the PERC Solar Module is a reliable and durable solar panel that is perfect for a range of applications. Whether you are looking to power a small home or a large commercial building, this product is sure to meet your needs and exceed your expectations.
Features:
- Product Name: PERC Solar Module
- Frame: Anodized Aluminium Alloy(Black)
- Connectors: MC4
- Mechanical Load: Front Side 5400Pa, Back Side2400Pa
- Operating Temperature: -40°C~+85°C
- Back Glass: 1.6mm Black Grid-patterned Glass
This PERC Solar Module is perfect for use in Home Solar System Kits. It features an intelligent Solar Charge Controller for efficient energy management. The black solar PV panels come with an Anodized Aluminium Alloy(Black)frame and MC4 connectors. It can withstand mechanical loads of Front Side 5400Pa and Back Side2400Pa, and operate in temperatures ranging from -40°C~+85°C. The back glass is made of 1.6mm Black Grid-patterned Glass, making it a durable and reliable choice for any solar installation.
ELECTRICAL DATA AT STC*
| Power output (Pmax) |
445 W |
450 W |
455 W |
| Power tolerance |
0~+5 W |
0~+5 W |
0~+5 W |
| Module efficiency |
20.36% |
20.58% |
20.81% |
| Maximum power voltage (Vmp) |
40.84 V |
40.96 V |
41.06 V |
| Maximum power current (Imp) |
10.90 A |
10.99 A |
11.08 A |
| Open circuit voltage (Voc) |
49.14 V |
49.28 V |
49.41 V |
| Short circuit current (Isc) |
11.48 A |
11.57 A |
11.66 A |
*Standard Test Conditions (STC): Irradiance: 1,000 W / m² • Cell temperature: 25°C • AM: 1.5
ELECTRICAL DATA AT NOCT**
| Power output (Pmax) |
331.80 W |
335.53 W |
339.26 W |
| Maximum power voltage (Vmp) |
38.29 V |
38.40 V |
38.49 V |
| Maximum power current (Imp) |
8.65 A |
8.73 A |
8.80 A |
| Open circuit voltage (Voc) |
45.57 V |
45.70 V |
45.82 V |
| Short circuit current (Isc) |
9.33 A |
9.41 A |
9.48 A |
**Nominal Operating Cell Temperature (NOCT): Irradiance: 800 W / m² • Environment temperature: 20°C • AM: 1.5 • Wind speed: 1 m/s
MECHANICAL CHARACTERISTICS
| Cell type |
Monocrystalline (166x83mm) |
| Number of cells |
144 |
| Dimensions |
2,102x1,040x35mm |
| Weight |
24.5 kg |
| Glass |
Glass 3.2 mm Tempered Glass |
| Frame |
Anodized aluminium alloy |
| Junction box |
IP68 rated (3 by pass diodes) |
| Cable |
4.0 mm2 , 300 mm (+) / 300 mm (-) ; Length can be customized |
| Connector |
MC4 or MC4 compatible |
| Max front load (e.g.: snow) |
5,400 Pa |
| Max back load (e.g.: wind) |
2,400 Pa |
TEMPERATURE CHARACTERISTICS MAXIMUM RATINGS
| NMOT |
41 °C ±3 °C |
| Temperature coefficient of Pmax |
-0.35%/°C |
| Temperature coefficient of Voc |
-0.30%/°C |
| Temperature coefficient of Isc |
+0.05%/°C |
PACKAGING (2,102x1,040x35mm)
| Type |
Quantity |
Weight |
| Per Pallet |
31 pcs |
800 kg |
| 40ft HQ Container |
682 pcs |
17.60 t |
Applications:
Sangsolar is a top-quality brand from China that provides high-performance PERC solar modules for various occasions and scenarios. The product is designed with ClassⅡ safety protection, making it safe and reliable for users.
The PERC solar module comes with output cables of 4mm2 and 300mm length, which can be customized to suit specific requirements. This makes it a perfect fit for emergency solar power kits and home solar system kits. The black solar PV panels are aesthetically pleasing and blend well with the environment.
The junction box of the PERC solar module is IP68 rated and has three bypass diodes. This ensures that the module is well protected from dust, water, and other external factors. The mechanical load capacity of the front side is 5400Pa and 2400Pa for the backside, making it strong enough to withstand harsh weather conditions.
The PERC solar module is made of mono-crystalline silicon with a size of 182*91mm, making it highly efficient in converting sunlight into electricity. This feature makes it ideal for outdoor activities such as camping, hiking, and mountaineering. It can also be used in residential and commercial settings, including rooftops and solar farms.
Whether you need a reliable power source for emergency situations or want to reduce your carbon footprint, the Sangsolar PERC solar module is an excellent choice. Its versatility and durability make it suitable for a wide range of applications, including off-grid and on-grid systems. Invest in this product today and enjoy the benefits of clean energy.
Customization:
Introducing Sangsolar PERC Solar Module, the perfect solution for your energy needs. Our solar panel is made with high-quality Mono-Crystalline Silicon 182*91mm cells, ensuring maximum efficiency and durability. Our product is made in China, adhering to strict quality standards.
The Sangsolar PERC Solar Module is designed with safety in mind, utilizing a ClassⅡ safety protection class. The panel operates at temperatures ranging from -40°C to +85°C, ensuring that it can withstand even the harshest weather conditions.
Our product is equipped with a 1.6mm Black Grid-patterned Back Glass and an IP68 Junction Box with 3 Bypass Diodes, making it both durable and reliable. Upgrade your solar panel with our Intelligent Solar Charge Controller, which provides efficient and effective charging for your system.
Choose Sangsolar PERC Solar Module for your energy needs and enjoy the benefits of Black Solar PV Panels that are both efficient and stylish.
Packing and Shipping:
Product Packaging:
- The PERC Solar Module will be securely packaged in a sturdy cardboard box.
- The box will be labeled with the product name, specifications, and handling instructions.
- Inside the box, the module will be protected with foam padding to prevent any damage during shipping.
Shipping:
- Shipping will be arranged through a reliable courier service.
- The shipment will be fully insured to protect against any loss or damage.
- A tracking number will be provided to the customer to monitor the progress of the shipment.
- The PERC Solar Module will be shipped to the customer's address provided at the time of purchase.
FAQ:
Q: What is PERC technology in Sangsolar modules?
A: PERC stands for Passivated Emitter Rear Cell technology. This technology improves the efficiency of solar cells by placing a passivation layer at the rear of the cell. Sangsolar modules use PERC technology to achieve higher efficiency and performance.
Q: What is the warranty period for Sangsolar PERC modules?
A: Sangsolar PERC modules come with a standard 25-year power output warranty and a 10-year product warranty.
Q: How are Sangsolar PERC modules tested for quality assurance?
A: Sangsolar PERC modules undergo rigorous testing to ensure they meet high standards of quality and performance. These tests include thermal cycling, damp heat testing, and mechanical load testing.
Q: What is the maximum power output of Sangsolar PERC modules?
A: The maximum power output of Sangsolar PERC modules varies depending on the specific model. Please refer to the product datasheet for detailed information on power output.
Q: Where are Sangsolar PERC modules manufactured?
A: Sangsolar PERC modules are manufactured in China, the place of origin of the brand.
