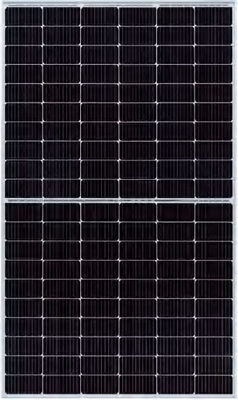

530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors
  • 530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors
530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors
530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors
  • 530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors

530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors

Power: 530 W
Operating Voltage (Vmp: 40.58 V
Operating Current (Impp: 13.06 A
Module Efficiency (%): 20.51 %
Module Dimensions: 2279x1134x35mm
Weight: 29 Kg
Output Cables: 4mm2，300mm(+)/300mm(-) Or Customized Length
Frame: Anodized Aluminium Alloy(Black）
Download

Product Details

Mechanical Load::
Front Side 5400Pa, Back Side2400Pa
Operating Temperature::
-40°C~+85°C
Back Glass::
1.6mm Black Grid-patterned Glass
Connectors::
MC4
Front Glass::
AR Coating Tempered Glass
Safety Protection Class::
ClassⅡ
Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV/BSP/CSI
Model Number:
SANGSOLAR
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
High Light:

550W 144 cell solar panel

,

Black 144 cell solar panel

,

ClassⅡ solar pv panels

Product Description

Product Description:

One of the key features of the PERC Solar Module is its junction box, which has an IP68 rating. This ensures that the panel is completely waterproof and can withstand even the harshest weather conditions. Additionally, the panel has 3 bypass diodes that help to prevent hotspots and improve its overall performance.

The PERC Solar Module is also designed with safety in mind. It has a safety protection class of Class II, which means that it has double insulation and provides an extra layer of protection against electric shocks. This makes it a safe and reliable choice for emergency solar power kits.

The frame of the PERC Solar Module is made from anodized aluminium alloy, which gives it a sleek and modern look. The black colour of the frame makes it a popular choice for customers who want black solar PV panels that blend in seamlessly with their roof. The frame is also highly durable and can withstand mechanical loads of up to 5400Pa on the front side and 2400Pa on the back side.

The PERC Solar Module is also designed for easy installation and maintenance. It comes with MC4 connectors that are compatible with most solar inverters and can be easily connected without the need for special tools or equipment. This makes it a popular choice for both residential and commercial installations.

In summary, the PERC Solar Module is a high-quality solar panel that provides reliable and efficient energy production. Its advanced features and attributes, including its IP68 junction box, Class II safety protection class, anodized aluminium alloy frame, and MC4 connectors make it a popular choice among customers who want black solar PV panels that are easy to install and maintain. It is an ideal choice for emergency solar power kits and offers a range of benefits for both residential and commercial installations.



Features:

  • Product Name: PERC Solar Module
  • Solar Cell: Mono-Crystalline Silicon 182*91mm
  • Mechanical Load: Front Side 5400Pa, Back Side2400Pa
  • Output Cables: 4mm2,300mm(+)/300mm(-) Or Customized Length
  • Back Glass: 1.6mm Black Grid-patterned Glass
  • Safety Protection Class: ClassⅡ
  • AC DC Hybrid Solar Charge Controller
  • Emergency Solar Power Kit
  • Home Solar System Kits

STC*



(Pmax) 530 W 535 W 540 W 545 W 550 W
Tolerance 0~+5 W 0~+5 W 0~+5 W 0~+5 W 0~+5 W
Efficency 20.51 % 20.70 % 20.89 % 21.09 % 21.28 %
 (Vmp) 40.58 V 40.68 V 40.79 V 40.89 V 40.98 V
(Imp) 13.06 A 13.15 A 13.24 A 13.33 A 13.42 A
 (Voc) 49.29 V 49.39 V 49.49 V 49.59 V 49.68 V
 (Isc) 13.64 A 13.73 A 13.83 A 13.92 A 14.01 A

NOCT*



 (Pmax) 395.18 W 398.91 W 402.64 W 406.37 W 410.10 W
 (Vmp) 38.05 V 38.14 V 38.24 V 38.33 V 38.42 V
 (Imp) 10.37 A 10.44 A 10.52 A 10.59 A 10.66 A
 (Voc) 45.71 V 45.80 V 45.90 V 45.99 V 46.07 V
 (Isc) 11.09 A 11.16 A 11.24 A 11.32 A 11.39 A


530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors 0530-550W 144 Cell Solar Panel Customized Length 4mm2 Output Cables Black Solar PV Panels MC4 Connectors 1

Applications:

Residential Solar Energy Systems: The Sangsolar PERC Solar Module is an ideal choice for residential solar energy systems. Its high power output, advanced technology, and durable construction make it a reliable and cost-effective option for homeowners who want to generate their own renewable energy. The panel can be used in conjunction with an AC DC Hybrid Solar Charge Controller or an Intelligent Solar Charge Controller to maximize performance and efficiency.

Commercial Solar Energy Systems: The PERC Solar Module is also well-suited for commercial solar energy systems. Its high power output and durable construction make it an ideal option for businesses and organizations that want to reduce their carbon footprint and save money on energy costs. The panel can be used in conjunction with an AC DC Hybrid Solar Charge Controller or an Intelligent Solar Charge Controller to maximize performance and efficiency.

Off-Grid Solar Power Systems: The Sangsolar PERC Solar Module is a great choice for off-grid solar power systems. Its high power output and durable construction make it a reliable option for powering homes, cabins, and other off-grid structures. The panel can be used in conjunction with an AC DC Hybrid Solar Charge Controller or an Intelligent Solar Charge Controller to maximize performance and efficiency.

Solar Water Pumping Systems: The PERC Solar Module can also be used in solar water pumping systems. Its high power output and durable construction make it a reliable option for powering water pumps, even in remote locations. The panel can be used in conjunction with an AC DC Hybrid Solar Charge Controller or an Intelligent Solar Charge Controller to maximize performance and efficiency.

The Sangsolar PERC Solar Module is an excellent choice for anyone looking for a high-quality solar panel that is built to last. Its advanced features, including connectors MC4, AR Coating Tempered Glass front glass, and mechanical load of front side 5400Pa and back side 2400Pa, make it a top-performing panel that can withstand even the harshest weather conditions. Additionally, the panel comes with output cables of 4mm2 and 300mm(+)/300mm(-) or customized length, making it easy to install and use. Whether you're looking to power your home, business, or an off-grid structure, the PERC Solar Module is an excellent choice.

And with its sleek black design, the PERC Solar Module looks great on any roof or surface. So if you're looking for a reliable, high-performing solar panel, the Sangsolar PERC Solar Module is an excellent choice.



Customization:

Customize your Sangsolar PERC Solar Module with our product customization services! Made in China, our solar panels feature an anodized aluminium alloy black frame and 1.6mm black grid-patterned back glass for a sleek and modern look. With a mechanical load of front side 5400Pa and back side 2400Pa, our PERC solar modules are durable and reliable. They also come with safety protection class Ⅱ and MC4 connectors for easy installation.

Looking for more customization options? We offer an intelligent solar charge controller to optimize the efficiency of your solar panels and ensure maximum power output. Additionally, we offer black solar PV panels for a more uniform and aesthetically pleasing solar array.









Packing and Shipping:

Product Packaging:

  • The PERC Solar Module will be packaged in a sturdy cardboard box to ensure safe transportation.
  • The module will be securely wrapped in bubble wrap to prevent any damage during shipping.
  • The box will also contain foam inserts to provide additional protection.

Shipping:

  • The PERC Solar Module will be shipped via a reliable shipping provider such as DHL or FedEx.
  • The shipping cost will be calculated based on the destination and weight of the package.
  • The tracking number will be provided to the customer once the package is shipped.
  • The estimated delivery time will depend on the destination, but typically ranges from 3-7 business days.


FAQ:

  1. What is the brand name of the solar module?

    A: The brand name of the solar module is Sangsolar.

  2. Where is the Sangsolar solar module manufactured?

    A: The Sangsolar solar module is manufactured in China.

  3. What is the power output of the Sangsolar solar module?

    A: The power output of the Sangsolar solar module may vary depending on the model. Please refer to the product specifications for more information.

  4. What is the warranty period for the Sangsolar solar module?

    A: The warranty period for the Sangsolar solar module may vary depending on the model. Please refer to the product specifications for more information.

  5. Is the Sangsolar solar module suitable for use in residential or commercial applications?

    A: Yes, the Sangsolar solar module is suitable for use in both residential and commercial applications.

Tags:

Perc Monofacial Module,

144cells pv module bifacial,

mono perc module IP68
