Product Description:

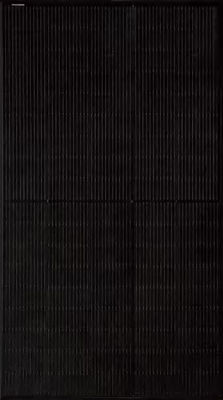

This TOPCON solar power panel is equipped with a monocrystalline cell type, which allows it to capture more sunlight and produce more energy. Additionally, it is designed with an anodized aluminum alloy frame material, making it lightweight yet sturdy. This material also ensures that the panel can withstand harsh weather conditions and resist corrosion, ensuring its longevity and reliability.
This solar panel has an operating temperature range of -40°C to +85°C, making it suitable for various weather conditions and environments. You can trust this TOPCON solar energy panel to provide you with sustainable and reliable power output for years to come.
Invest in the TOPCON Solar Module and experience the benefits of solar energy. Not only are you contributing to a greener environment, but you are also saving money on your energy bills. Get your hands on this TOPCON solar energy panel today and start harnessing the power of the sun.
positive power tolerance of +3%
IEC61 21 5(201 6) , IEC61 730(201 6)
ISO9001 :201 5: Quality Management system
ISO1 4001 :201 5: Environment Manogement system
IS4500l :201 8
occupational Health and safety Manogement systems
Features:
- Product Name: TOPCON Solar Module
- Cell Type: Monocrystalline
- Efficiency: 18.3%
- Warranty: 25 Years
- Operating Temperature: -40°C To +85°C
- Connector Type: MC4
The TOPCON Solar Module is a cutting-edge solar panel that harnesses the power of the sun to generate electricity. This TOPCON solar module panel features monocrystalline cells that offer superior performance and efficiency. With an efficiency rating of 18.3%, this TOPCON solar photovoltaic panel can produce a large amount of energy with minimal space requirements.
Plus, with a 25-year warranty, you can trust that this TOPCON silicon solar panel will continue to perform for years to come. It can operate in temperatures ranging from -40°C to +85°C, making it suitable for a wide range of environments. And with its MC4 connector type, installation is a breeze.
SMBB Technology
Better light tropping and current collection to improve module power output and reliability.
PID Resistance
Excellent Anti - PID Performa nce guarantee via optimized mass-production process and materials control .
Durability Against Extreme Environmental conditions
High salt mist and ammonia resistance
Hot 2 .O Technology
The N-type module with Hot 2 . 0 technology has better
2 . 0 reliability and lower LID/LETiD
Enhanced MechanicaI Load
certified to withstand: wind load (2400 pascal) and snow load (5400 pascal) .
Applications:
With an impressive efficiency rating of 18.3%, these TOPCON solar energy panels are able to convert a higher percentage of sunlight into usable energy, helping to reduce your energy bills and your carbon footprint. And with an operating temperature range of -40°C to +85°C, they are able to withstand even the harshest weather conditions, ensuring that your solar system will continue to produce power even in extreme temperatures.
The TOPCON solar power panels from Sangsolar are also designed with convenience in mind. Featuring MC4 connectors, they are easy to install and connect to your solar system, allowing you to start generating clean, renewable energy in no time. And with a sturdy anodized aluminum alloy frame, these panels are built to last, with a 25-year warranty to give you added peace of mind.
Wondering where you can use TOPCON solar power panels? These panels are great for a wide range of applications, from residential and commercial buildings to remote power systems and off-grid installations. Whether you want to power your home, business, or remote cabin, the TOPCON solar module panel from Sangsolar is the perfect choice for reliable and efficient solar power.
| Cell Type |
182 P type Mono-crystalline |
| No. of cells |
108 (2x54) |
| Dimensions |
1722×1134×30mm |
| Weight |
20.5kg |
| Front Glass |
3.2mm,Anti-Reflection Coating, |
| Frame |
High Transmission, Low Iron, Tempered Glass |
| Junction Box |
IP68 Rated Anodized Aluminium Alloy |
| Output Cables |
TUV 1×4.0mm2 (+): 300mm , (-): 300mm or Customized Length |
| Module Type |
GPM-400W(108) |
GPM-405W(108) |
GPM-410W(108) |
GPM-415W(108) |
| STC NOCT |
STC NOCT |
STC NOCT |
STC NOCT |
| Maximum Power (Pmax) |
400Wp 298Wp |
405Wp 301Wp |
410Wp 305Wp |
415Wp 309Wp |
| Maximum Power Voltage (Vmp) |
31.01V 28.42V |
31.20V 28.56V |
31.44V 28.72V |
31.56V 28.88V |
| Maximum Power Current (Imp) |
12.90A 10.47A |
12.98A 10.55A |
13.04A 10.62A |
13.15A 10.69A |
| Open-circuit Voltage (Voc) |
37.05V 34.90V |
37.20V 34.98V |
37.35V 35.05V |
37.50V 35.21V |
| Short-circuit Current (Isc) |
13.60A 11.13A |
13.65A 11.19A |
13.70A 11.24A |
13.85A 11.32A |
| Module Efficiency STC (%) |
20.48% |
20.74% |
21.00% |
21.25% |
| Operating Temperature(℃) |
-40℃~+85℃ |
| Maximum system voltage |
1000/1500VDC (IEC) |
| Maximum series fuse rating |
25A |
| Power tolerance |
0~+3% |
| Temperature coefficients of Pmax |
-0.35%/℃ |
| Temperature coefficients of Voc |
-0.28%/℃ |
| Temperature coefficients of Isc |
0.048%/℃ |
| Nominal operating cell temperature (NOCT) |
45±2℃ |
Support and Services:
Our TOPCON Solar Module product comes with comprehensive technical support and services to ensure its optimal performance and reliability. Our team of experts is available to assist with any inquiries or issues related to installation, operation and maintenance of the product. We offer personalized training and education to help customers maximize the benefits of our solar modules. Additionally, we provide regular software updates and upgrades to improve functionality and address any potential vulnerabilities. Our commitment to customer satisfaction means that we are always available to provide prompt and effective support, so you can have peace of mind knowing that your solar modules are in good hands.
Packing and Shipping:
Product Packaging:
The TOPCON Solar Module will be packaged in a sturdy cardboard box with foam inserts to protect the product during shipping. The box will have the TOPCON logo and product name printed on it for easy identification.
Shipping:
The TOPCON Solar Module will be shipped via a reliable shipping company to ensure timely and safe delivery. Customers will receive a tracking number to monitor their shipment and ensure it arrives on time.
FAQ:
Q: What is the brand name of this solar module?
A: The brand name of this solar module is Sangsolar.
Q: Where is this solar module made?
A: This solar module is made in Beijing, China.
Q: What is the efficiency of this solar module?
A: The efficiency of this solar module varies depending on the specific model. Please refer to the product specifications for more information.
Q: What is the warranty period for this solar module?
A: Please refer to the warranty information provided with the product for details on the warranty period.
Q: Can this solar module be used for residential or commercial purposes?
A: Yes, this solar module can be used for both residential and commercial purposes.
