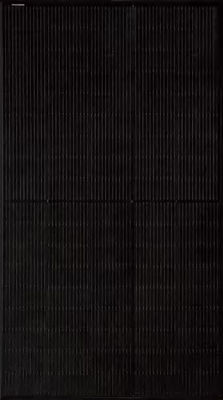

415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module
  • 415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module
415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module
415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module
  • 415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module

415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module

Power: 415w
Maximum Power Voltage (Vmp): 31.25V
Maximum Power Current (Imp): 13.28A
Efficiency: 21.51%
Dimensions: 1722×1134×30mm
Weight: 22kg
Glass Type: Tempered Glass
Operating Temperature: -40°C To +85°C
Download

Product Details

Cell Type::
Monocrystalline
Connector Type::
MC4
Warranty::
25 Years
Frame Material::
Anodized Aluminum Alloy
Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV/BSP/CSI
Model Number:
SANGSOLAR
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
20GW/Year
High Light:

435watt topcon solar module

,

topcon solar module 108cells

,

415watt mono facial module

Product Description

Product Description:

The TOPCON Solar Module Panel features tempered glass, which makes it highly durable and able to withstand harsh weather conditions. This glass type is designed to protect the solar cells from external factors such as hail, wind, dust, and rain, ensuring that the panel remains efficient throughout its lifespan.

The frame material of the TOPCON Solar Module Panel is made of anodized aluminum alloy. This material is known for its strength and durability, making the panel resistant to corrosion and rust. The aluminum alloy frame ensures that the panel remains stable and secure, even in extreme weather conditions.

The cell type of the TOPCON Solar Module Panel is monocrystalline. This cell type is known for its high-efficiency levels, making the panel capable of producing more electricity in a shorter amount of time. Additionally, the monocrystalline cells used in the TOPCON Solar Module Panel are highly efficient, ensuring that the panel can produce more electricity than other solar panels on the market.

The connector type of the TOPCON Solar Module Panel is MC4. This connector type is known for its reliability and durability, ensuring that the panel is secure and able to transfer energy efficiently. The MC4 connector type used in the TOPCON Solar Module Panel is also easy to install, making it a great option for homeowners and businesses looking to install solar power panels quickly and efficiently.

In summary, the TOPCON Solar Module Panel is a high-quality silicon solar panel that is designed to provide reliable and efficient solar energy for 25 years. It features tempered glass, anodized aluminum alloy frame, monocrystalline cells, and MC4 connector type, making it a great investment for those looking for a long-term solar energy solution. Whether you are a homeowner, business, or organization, the TOPCON Solar Module Panel is a reliable and efficient option for your solar energy needs.

positive power tolerance of +3%



IEC61 21 5(201 6) , IEC61 730(201 6)

ISO9001 :201 5: Quality Management system

ISO1 4001 :201 5: Environment Manogement system

IS4500l :201 8

occupational Health and safety Manogement systems



Features:

  • Product Name: TOPCON Solar Module
  • Operating Temperature: -40°C To +85°C
  • Frame Material: Anodized Aluminum Alloy
  • Efficiency: 21.51%
  • Cell Type: Monocrystalline
  • Connector Type: MC4
  • Type: N TYPE solar panel
  • TOPCON solar power panels

SMBB Technology

Better light tropping and current collection to improve module power output and reliability.

PID Resistance

Excellent Anti - PID Performa nce guarantee via optimized mass-production process and materials control .

Durability Against Extreme Environmental conditions

High salt mist and ammonia resistance

Hot 2 .O Technology

The N-type module with Hot 2 . 0 technology has better

2 . 0 reliability and lower LID/LETiD

Enhanced MechanicaI Load

certified to withstand: wind load (2400 pascal) and snow load (5400 pascal) .

Applications:

The Sangsolar TOPCON solar system module can operate in a wide range of temperatures, ranging from -40°C to +85°C. This makes it suitable for use in extreme weather conditions. The frame material used in the solar panel is anodized aluminum alloy, which makes it durable and resistant to corrosion. The connector type used in the panel is MC4, making it easy to install and connect to other systems.

The Sangsolar TOPCON solar energy panels can be used in various applications, including residential, commercial, and industrial settings. The panels can be used to power homes, schools, hospitals, and other buildings. They can also be used to power streetlights and other outdoor lighting systems.

The Sangsolar TOPCON solar energy panels are also suitable for use in remote and off-grid locations. They can be used to power remote homes, cabins, and other structures where access to the power grid is not available. The panels can also be used in RVs and other mobile homes to provide a source of renewable energy.

The Sangsolar TOPCON solar energy panels come with a 25-year warranty, ensuring that they will provide a reliable source of renewable energy for many years to come. The N TYPE solar panel technology used in the panels ensures high efficiency and better performance, making them a cost-effective solution for all your energy needs.

Mechanical Characteristics
Cell Type 182 N type Mono-crystalline
No. of cells 108 (2×54)
Dimensions 1722×1134×30mm
Weight 22kg
Front Glass

3.2mm,Anti-Reflection Coating,

High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP68 Rated
Output Cables

TUV 1×4.0mm2

(+): 300mm , (-): 300mm or Customized Length



Module Type GPT54M-415HC GPT54M-420HC GPT54M-425HC GPT54M-430HC GPT54M-435HC
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 415Wp 312Wp 420Wp 316Wp 425Wp 320Wp 430Wp 323Wp 435Wp 327Wp
Maximum Power Voltage (Vmp) 31.25V 29.21V 31.37V 29.34V 31.49V 29.50V 31.61V 29.63V 31.73V 29.75V
Maximum Power Current (Imp) 13.28A 10.68A 13.39A 10.76A 13.50A 10.83A 13.61A 10.91A 13.72A 10.99A
Open-circuit Voltage (Voc) 37.31V 36.02V 37.43V 36.20V 37.55V 36.38V 37.67V 36.56V 37.79V 36.74V
Short-circuit Current (Isc) 14.01A 11.29A 14.12A 11.36A 14.23A 11.42A 14.34A 11.49A 14.45A 11.55A
Module Efficiency STC (%) 21.25% 21.51% 21.76% 22.02% 22.28%
Operating Temperature(℃) -40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.29%/℃
Temperature coefficients of Voc -0.25%/℃
Temperature coefficients of Isc 0.045%/℃
Nominal operating cell temperature (NOCT) 45±2℃




Support and Services:

TOPCON Solar Module Product Technical Support:

  • Assistance with installation and commissioning of TOPCON solar modules
  • Troubleshooting technical issues with TOPCON solar modules
  • Recommendations for optimizing the performance of TOPCON solar modules
  • Assistance with warranty claims for TOPCON solar modules
  • Access to software updates and technical documentation for TOPCON solar modules

TOPCON Solar Module Services:

  • Customized design and engineering of solar systems utilizing TOPCON solar modules
  • Installation and commissioning of TOPCON solar modules and solar systems
  • Operations and maintenance services for TOPCON solar modules and solar systems
  • Training and support for installers and end-users of TOPCON solar modules and solar systems


Packing and Shipping:

Product Packaging for TOPCON Solar Module:

  • Each module will be packed in a sturdy cardboard box
  • Modules will be secured with foam padding to prevent damage during shipping
  • Boxes will be labeled with the product name, quantity, and handling instructions

Shipping Information for TOPCON Solar Module:

  • Modules will be shipped via ground transportation
  • Shipping fees will be calculated based on weight and destination
  • Customers will receive tracking information once the modules have been shipped

415Watt-435Watt TOPCON Solar Module 108cells 182 N Type Mono Facial Module 0

FAQ:

Q: What is the brand name of this solar module?

A: The brand name of this solar module is Sangsolar.

Q: Where is the Sangsolar module manufactured?

A: The Sangsolar module is manufactured in Beijing, China.

Q: What is the maximum power output of the Sangsolar module?

A: The maximum power output of the Sangsolar module varies depending on the specific model. Please refer to the product specifications for more information.

Q: What is the warranty period for the Sangsolar module?

A: The warranty period for the Sangsolar module varies depending on the specific model. Please refer to the product specifications for more information.

Q: Can the Sangsolar module be used for residential or commercial applications?

A: Yes, the Sangsolar module can be used for both residential and commercial applications.
