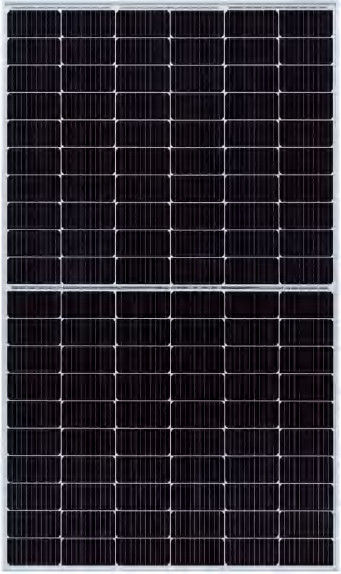

Conventional Monoperc Module Up To 595w Eff. 23.0% ClassⅡ Lightweight Half Cut Mono Perc

Product Description:

The PERC Solar Module is lightweight, with a weight of only 34.6kg, making it easy to install and handle. It comes with AR coating tempered glass, which provides excellent protection against harsh weather conditions and ensures that the solar panel is durable and long-lasting.

The maximum system voltage of the PERC Solar Module is DC1500V, which is higher than other solar panels on the market. This means that it can handle higher voltages and is more efficient than other solar panels. The maximum series fuse for this solar panel is 30A, which ensures that the solar panel is safe and reliable to use.

The PERC Solar Module is a half-cut mono panel, which means that it has a higher efficiency than other solar panels. The half-cut design reduces the resistance of each cell, which in turn increases the power output of the solar panel. This makes the PERC Solar Module more efficient and ensures that you get more power from each solar panel installed.

If you are looking for a high-quality solar panel that is reliable, efficient, and durable, then the PERC Solar Module is the perfect choice for you. It is a 400W mono PERC solar panel that is lightweight, has AR coating tempered glass, and can handle higher voltages than other solar panels. With its half-cut mono panel design, the PERC Solar Module is one of the most efficient solar panels on the market, making it a great investment for anyone looking to save money on their energy bills.

Features:

The Bifacial PERC Solar Module (half-cut) is an innovative solution to meet the growing demand for higher power output in the solar industry. With a power output of 395-415W, it offers dual-sided generation which effectively reduces the balance of system (BOS) costs. The conversion efficiency reaches up to 21.25% which means it can generate more power with less loss.

One of the unique features of this solar module is its innovative non-destructive cutting technology which reduces the risk of hidden cracks. This ensures a higher yield for the PV system. In addition, it is rarely affected by light-induced degradation and is resistant to harsh environments such as salt mist, sand, and dust, ammonia gas, etc. This makes it a reliable option for any location.

The Bifacial PERC Solar Module (half-cut) also boasts enhanced safety features. It has passed the Class A fire test and has an IP68 water-resistant rating for long-term weather endurance.

This solar module comes with an excellent linear power warranty. The power degradation within 2-30 years is ≤ 0.45% per year with minimum module output power not lower than 85% each 30 years. This makes it a smart investment for any solar project.

ELECTRICAL CHARACTERISTICS
Model/QWBDM156-	580W	585W	590W	600W	605W
Testing Condition: STC Maximum Power (Pmax/W)	580	585	590	600	605
Operating Voltage (Vmpp/V)	44.35	44.56	44.80	45.29	45.53
Operating Current (Impp/A)	13.08	13.13	13.17	13.25	13.29
Open-Circuit Voltage (Voc/V)	53.11	53.20	53.40	53.50	53.61
Short-Circuit Current (Isc/A)	13.84	13.88	13.98	14.03	14.08
Module Efficiency (%)	20.75	20.93	21.11	21.46	21.64

STC: Irradiance 1000W/m², Spectra at AM1.5,Cell Temperature 25℃ .

Power Output Tolerance: 0~+5W, Test Uncertainty for Pmax:±3%

REAR SUDE POWER GAIN(REFERENCE TO 595W FRONT)

Applications:

The PERC Solar Module is a versatile product that can be used in a variety of settings. It is ideal for residential and commercial applications, including rooftop installations, solar farms, and ground-mounted systems. With a weight of just 34.6kg, it is easy to install and transport, making it a popular choice for both DIY and professional installations.

One of the key features of the PERC Solar Module is its back glass. Made from 1.6mm black grid-patterned glass, it is highly durable and provides excellent protection against weather and other environmental factors. Additionally, the panel has a refer. bifaciality factor of 70%±5%, which means that it can absorb light from both sides, further increasing its energy output.

The PERC Solar Module is a mono PERC half cut 400 watt panel, making it one of the most efficient solar panels on the market. Its high energy output makes it particularly well-suited to large-scale installations, where maximum energy production is essential. Whether you are looking to power your home or business, or to contribute to a larger solar energy project, the PERC Solar Module from Sangsolar is an excellent choice.

MECHANICAL CHARACTERISTICS

APPLICATION CONDITIONS

Support and Services:

The PERC Solar Module product technical support and services include:

- Assistance with product installation and setup

- Troubleshooting and technical issue resolution

- Warranty and repair services

- Product training and education

- Consultation on system design and configuration

- Ongoing support and maintenance

FAQ:

Q: What is the brand name of the solar module?

A: The brand name of the solar module is Sangsolar.

Q: What is the model number of the solar module?

A: The model number of the solar module is PERC BDM156-580-605-182

Q: Where is the solar module produced?

A: The solar module is produced in China.

Q: Is the solar module suitable for residential or commercial use?

A: The solar module is suitable for both residential and commercial use.

Q: What is the warranty period for the solar module?

A: The warranty period for the solar module is not included in this Q&A as it is excluded in the instructions.
