ROH-H-P20 Series Pure Sine Power Inverter Ultra Compact 5,500W For Wall Mounting 220/230VAC
  • ROH-H-P20 Series Pure Sine Power Inverter Ultra Compact 5,500W For Wall Mounting  220/230VAC
  • ROH-H-P20 Series Pure Sine Power Inverter Ultra Compact 5,500W For Wall Mounting  220/230VAC

ROH-H-P20 Series Pure Sine Power Inverter Ultra Compact 5,500W For Wall Mounting 220/230VAC

Product Highlights: High-durability Lithium Batteries (over 6000 Cycles)
Utility Voltage: 176VAC To 264VAC
Utility Frequency: 45Hz To 65Hz
Maximum Utility Charging Current: 100A
Inverter Rated Power (@35°C): 5,500W
Inverter Output Voltage: 220/230VAC±3%
Highlight:

compact pure sine wave inverter

,

compact pure sine power inverter

,

5

,

500w pure sine wave inverter

Download

Product Details

Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV
Model Number:
SANGSOLAR
Minimum Order Quantity:
2 sets
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
50000sets
Highlight:

compact pure sine wave inverter

,

compact pure sine power inverter

,

5

,

500w pure sine wave inverter

Product Description

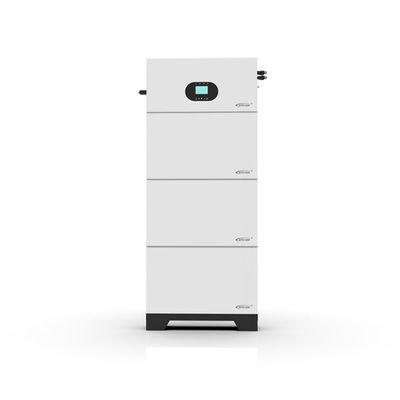

Experience Advanced Energy Solutions with the ROH-H-P20 Series All-In-One Energy Storage System. This sophisticated system is designed to meet the demands of modern energy management, integrating high-durability lithium batteries with an off-grid inverter in a sleek, wall-mountable package. Capable of handling up to six lithium battery modules, each offering 5.12 kWh for a total of up to 30.72 kWh, the ROH-H-P20 ensures substantial power capacity for a variety of uses, from residential backup to off-grid applications.

The system's off-grid inverter host offers comprehensive energy solutions with its ability to manage inputs from the grid, oil generators, and solar panels while providing utility bypass and inverter output options. This allows for flexible and efficient use of available power sources, ensuring optimal energy utilization. The ROH-H-P20 features state-of-the-art DSP control technology for precise and stable operation, enhanced by MPPT technology that maximizes the efficiency of solar arrays under various conditions.

For user convenience, the unit supports extensive parallel operation capabilities, making it scalable for more extensive setups by linking multiple systems for either single-phase or three-phase output. Its user-friendly interface, complete with a large LCD screen, provides real-time system data and operational control, further simplified by remote management capabilities via Bluetooth or Wi-Fi.

Embrace the future of energy with the ROH-H-P20 Series, where functionality meets innovation in energy storage, offering a smart, space-saving solution that guarantees safety, efficiency, and reliability for all your power needs.

Product Highlights

Ultra-compact design for wall-mounting

High-durability lithium batteries (over 6000 cycles)

Pure sine wave output

Main unit supports single-phase and three-phase parallel operation (up to 12 units)

Dual PV input support enhances PV utilization efficiency

RS485 communication interface, optional Bluetooth, WiFi, 4G,etc.

Remote monitoring via App

Historical data recording function, storage capacity of 25000 records

Comprehensive electronic protection

Operating temperature range: -20℃ to 50℃
