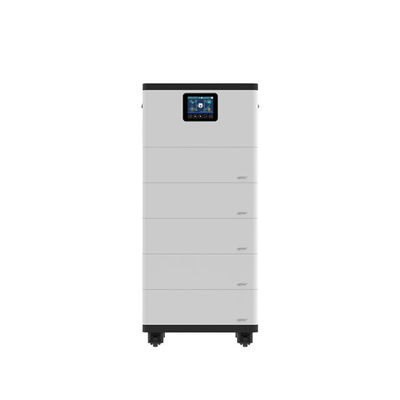

ROH-F-P30 Series All-In-One Energy Storage Inverter Compact For Wall Mounting Dual PV
  • ROH-F-P30 Series All-In-One Energy Storage Inverter Compact For Wall Mounting Dual PV
  • ROH-F-P30 Series All-In-One Energy Storage Inverter Compact For Wall Mounting Dual PV

ROH-F-P30 Series All-In-One Energy Storage Inverter Compact For Wall Mounting Dual PV

Product Highlights: High-durability Lithium Batteries (over 6000 Cycles)
Utility Voltage 176VAC To 264VAC (Default),: 90VAC To 280VAC (Configurable)
Utility Frequency: 45Hz To 65Hz
Maximum Utility Charging Current: 100A
Inverter Output Voltage: 220/230VAC±3%
Output Voltage Waveform: Pure Sine Wave
Highlight:

all-in-one energy storage inverter

,

energy storage inverter compact

,

all-in-one ess inverter

Download

Product Details

Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV
Model Number:
SANGSOLAR
Minimum Order Quantity:
2 sets
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
50000sets
Highlight:

all-in-one energy storage inverter

,

energy storage inverter compact

,

all-in-one ess inverter

Product Description

The ROH-F-P30 Series All-in-One Energy Storage System combines advanced lithium batteries with a versatile off-grid inverter, offering up to 30.72 kWh capacity to meet diverse power needs. It supports single and three-phase outputs, adapts to various power sources, and features a user-friendly design with modular stacking and easy mobility.

Optimized with DSP technology and dual MPPT solar charging, it enhances energy efficiency, ensuring reliable power with pure sine wave output. The system is easy to monitor via a large LCD display and expandable up to 12 units, making it ideal for scaling up energy solutions in any setting. Explore more about how this system can enhance your energy independence.



Model ROH5542F-05X1P30 ROH5542F-10X2P30 ROH5542F-15X3P30 ROH5542F-20X4P30 ROH5542F-25X5P30 ROH5542F-30X6P30
Utility input Utility Voltage 176VAC to 264VAC (Default),
90VAC to 280VAC (Configurable)
Utility Frequency 45Hz to 65Hz
Maximum Utility Charging Current 100A
Switch Response Time Switch Response Time–Inverter to Utility: 10ms
Switch Response Time–Utility to Inverter (when the load power is higher than 100W): 20ms
Inverter output Inverter Rated Power (@35°C) 5,500W
3-second Transient Surge Output Power 8,500W
Inverter Output Voltage 220/230VAC±3%
Inverter Frequency 50/60Hz±0.2%
Output Voltage Waveform Pure sine wave
Load Power Factor 0.2–1(VA ≤ Rated output power)
THDu (Total Harmonic Voltage Distortion) ≤ 3% (48V resistive load)
Maximum Load Efficiency 92%
Maximum Inverter Efficiency 94%
  PV Maximum Open-circuit Voltage 500V (At the lowest operating environment temperature)
440V (At 25℃)
Solar controller MPPT Voltage Range 85VDC to 400VDC
  MPPT Input Channels 2 ways
  PV Maximum Input Current 2 ways, 2*15A
  PV Maximum Input Power 2*3,000W
  PV Maximum Charging Current 100A
  MPPT Maximum Efficiency ≥ 99.5%
Battery Battery Type LFP
Battery Pack 5.12KWH, 51.2V/100AH
Battery Pack Quantity 1 2 3 4 5 6
Battery Rated Voltage 51.2VDC
Battery Energy 5.12KWH 10.24KWH 15.36KWH 20.48KWH 25.6KWH 30.72KWH
Battery Work Temperature Range Charging: 0℃ to +50℃, discharging:-20℃ to +50℃
Others No-load Losses <1.0 A (Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @48V input)
Standby Current <0.15A (Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @48V input)
Installation Method Flat stacking
Environment parameters Work Temperature Range -20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
Storage Temperature Range -25℃ to +60℃
Enclosure IP30
Relative Humidity < 95% (N.C.)
Altitude <4,000M (If the altitude exceeds 2,000 meters, the actual output power is reduced appropriately)
Mechanical parameters Dimension (Length x Width x Height) 530mm*500mm*556mm 530mm*500mm*718mm 530mm*500mm*880mm 530mm*500mm*1,042mm 530mm*500mm*1,205mm 530mm*500mm*1,367mm
Converter Net Weight 37.8Kg 37.8Kg 37.8Kg 37.8Kg 37.8Kg 37.8Kg
Total Net Weight 95.3Kg (Mobile Bracket) 143.1Kg (Mobile Bracket) 190.9Kg (Mobile Bracket) 238.7Kg (Mobile Bracket) 286.5Kg (Mobile Bracket) 334.3Kg (Mobile Bracket)
87.9Kg (Fixed Bracket) 135.7Kg (Fixed Bracket) 183.5Kg (Fixed Bracket) 231.3Kg (Fixed Bracket) 279.1Kg (Fixed Bracket) 326.9Kg (Fixed Bracket



Product Highlights

Ultra-compact design for wall-mounting

High-durability lithium batteries (over 6000 cycles)

Pure sine wave output

Main unit supports single-phase and three-phase parallel operation (up to 12 units)

Dual PV input support enhances PV utilization efficiency

RS485 communication interface, optional Bluetooth, WiFi, 4G,etc.

Remote monitoring via App

Historical data recording function, storage capacity of 25000 records

Comprehensive electronic protection

Operating temperature range: -20℃ to 50℃
