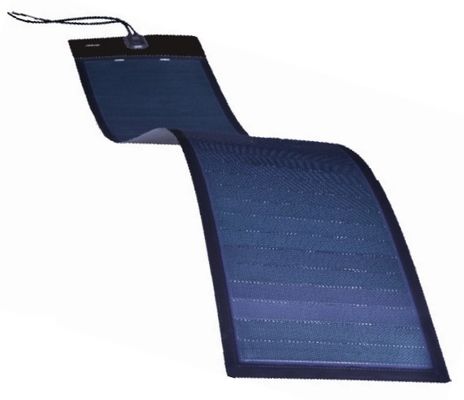

2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N
  • 2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N
2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N
2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N
  • 2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N

2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N

Nominal Power: 110
Maximum Power Voltage: 28.4
Maximum Power Current: 3.89
Aperture Efficiency: 14.4%
DImension: 2583x348x17mm
Connector Type: MC4
Certifications: CE, TUV, UL
Module Efficiency: 10-12%
Download

Product Details

Cell Material::
Amorphous Silicon
Frame Material::
Aluminum Alloy
Glass Type::
Tempered Glass
Backsheet Material::
Polyester
Cell Type::
Thin Film
Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV
Model Number:
SANGSOLAR
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
High Light:

110w thin film solar module

,

110w amorphous silicon solar module

,

140w thin film solar module

Product Description

Product Description:

Our Thin Film solar module is available in a sleek black design, making it an ideal choice for residential and commercial installations where aesthetics are a priority. The black Solar PV Panels are highly efficient, with a module efficiency of 10-12%, ensuring that you get the most power possible from your installation. Additionally, the Double Glass Solar Panel design provides exceptional durability, ensuring that your investment will last for years to come.

This solar module is designed to operate in a wide range of temperatures, from -40°C to +85°C, making it suitable for use in a variety of environments. Additionally, the frame material is made from high-quality Aluminum Alloy, providing exceptional strength and durability while remaining lightweight and easy to install. The Connector Type is MC4, ensuring compatibility with a wide range of inverters and other solar system components.

You can trust in the quality of our Thin Film solar module, as it has been certified by top industry organizations, including CE, TUV, and UL. These certifications ensure that our module meets the highest standards for safety, efficiency, and overall performance.

In summary, our Thin Film solar module is an excellent choice for those looking for a Flexible Solar Panel that is both efficient and durable. With black Solar PV Panels and a Double Glass Solar Panel design, this module is not only functional but also aesthetically pleasing. With a wide operating temperature range, high-quality frame material, and MC4 Connector Type, our module is suitable for use in a variety of applications. And with certifications from CE, TUV, and UL, you can trust that our module meets the highest industry standards for quality and safety.



Features:

Record efficiency levels in a CIGS flexible form factor
Low installed weight at less than 2.3 kg/m2
(<0.5 lb/ft2 )
No penetrations, ballast or racking required
Applicable for high wind load and high seismic hazard areas
Bypass diodes reduce PV system shading losses
Directly bonds to many approved surfaces
      FLEX–03 FLEX–03 FLEX–03 FLEX–03 FLEX–03 FLEX–03 FLEX–03
      110N 115N 120N 125N 130N 135N 140N
Nominal Power PMPP [W] 110 115 120 125 130 135 140
Aperture Efficiency η [%] 14.4% 15.0% 15.7% 16.4% 17.0% 17.7% 18.3%
Power Output Tolerance   [W] +5/-0 +5/-0 +5/-0 +5/-0 +5/-0 +5/-0 +5/-0
Maximum Power Voltage VMPP [V] 28.4 29.3 30.3 31.2 32.1 33.0 33.9
Maximum Power Current IMPP [A] 3.89 3.93 3.97 4.01 4.06 4.10 4.14
Open Circuit Voltage VOC [V] 36.3 37.0 37.8 38.6 39.4 40.1 40.9
Short Circuit Current ISC [A] 4.66 4.62 4.58 4.53 4.49 4.45 4.41
Maximum Series Fuse Rating   [A] 10
Maximum System Voltage (IEC/UL) [V] 1000/1000

2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N 0

Applications:

1. Flexible Solar Panel: The Sangsolar Thin Film solar module can be applied on curved surfaces, making it perfect for installations on boats, RVs, and other vehicles. Its flexibility allows it to conform to the surface it is installed on, making it easy to install and transport.

2. Double Glass Solar Panel: This solar module is also available in a double glass version, which provides better durability and protection against harsh weather conditions. The double glass design also increases its efficiency and performance, making it a great choice for residential and commercial installations.

3. Flexible PV Solar Panels: The Sangsolar Thin Film solar module is also ideal for installations in remote locations that require flexible solar panels. It can be easily transported and installed in areas where traditional PV solar panels are not feasible.

The Sangsolar Thin Film solar module is also certified by CE, TUV, and UL, ensuring its quality and safety. Its MC4 connector type makes it easy to connect with other solar modules and accessories, providing a hassle-free installation process. Made in China, this solar module is a great investment for those who want to switch to renewable energy sources.

2.6 METER .35m X 2.6m 110W –140W CIGS Amorphous Silicon Solar Module FLEX SERIES–03N 1

Customization:

Our solar panels are highly customizable to fit your specific needs, whether it's for a residential or commercial application. With module efficiency ranging from 10-12%, you can be sure that you're getting the most out of your solar investment. The tempered glass and polyester backsheets ensure durability and protection against harsh weather conditions.

Our amorphous silicon cell material provides excellent performance in low light conditions, making it an ideal choice for areas with less sunshine. The operating temperature range of -40°C to +85°C ensures that our solar panels can withstand extreme weather conditions.

Choose Sangsolar for your customized solar panel needs and experience the benefits of renewable energy today!



Support and Services:

Our Thin Film solar modules are designed for high performance, reliability, and durability. For technical support and services related to our Thin Film solar modules, we offer the following:

- In-house technical support team available to assist with any questions or concerns

- Product documentation and manuals available online for easy access

- Warranty coverage for up to 25 years to ensure customer satisfaction

- Field service technicians available to assist with installation and maintenance

Contact us for more information on our Thin Film solar modules and the technical support and services we offer.



Packing and Shipping:

Product Packaging:

Our Thin Film solar modules are carefully packaged to ensure safe delivery to your doorstep. Each module is securely packed in a sturdy cardboard box with protective foam inserts to prevent any damage during shipping.

Shipping:

We offer fast and reliable shipping services for our Thin Film solar modules. We work with trusted carriers to ensure prompt delivery to our customers. Shipping rates may vary depending on your location and the quantity of products ordered. Please contact us for more information on shipping rates and delivery times.



FAQ:

Q: What is the brand name of the solar module Thin Film product?

A: The brand name of the solar module Thin Film product is Sangsolar.

Q: Where is the Thin Film solar module product made?

A: The Thin Film solar module product is made in China.

Q: How efficient is the Sangsolar Thin Film solar module?

A: The efficiency of the Sangsolar Thin Film solar module varies depending on the specific product model. Please refer to the product specifications for more details.

Q: What is the warranty period for the Sangsolar Thin Film solar module?

A: Please refer to the warranty information provided by your supplier or contact Sangsolar directly for more information on the warranty period for the Thin Film solar module.

Q: Can the Sangsolar Thin Film solar module be used for residential applications?

A: Yes, the Sangsolar Thin Film solar module can be used for residential applications, as well as commercial and industrial applications.

Tags:

cigs pv module,

thin film solar module,

cigs module
