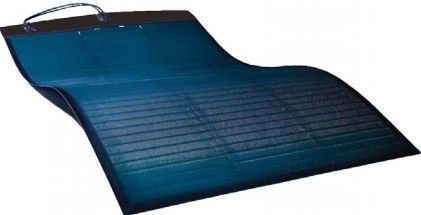

FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module
  • FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module
FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module
FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module
  • FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module

FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module

Nominal Power: 350
Maximum Power Voltage: 29.2
Maximum Power Current: 12.0
Aperature Efficiency: 15.3%
DImension: 2580x1000x17mm
Backsheet Material: Polyester
Frame Material: Aluminum Alloy
Module Efficiency: 10-12%
Download

Product Details

Cell Material::
Amorphous Silicon
Operating Temperature::
-40°C To +85°C
Certifications::
CE, TUV, UL
Connector Type::
MC4
Cell Type::
Thin Film
Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV
Model Number:
SANGSOLAR
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
High Light:

mc4 thin film pv module

,

mc4 cigs module

,

ce cigs module

Product Description

FLEX SERIES–03M CIGS Flexible Modules: High Power Density in a Flexible Form Factor



Features:

Record efficiency levels in a flexible form factor



Low installed weight at less than 2.0 kg/m2 (<0.5 lb/ft2)



No penetrations, ballast or racking required



Applicable for high wind load and high seismic hazard areas



Bypass diodes reduce PV system shading losses



Directly bonds to many approved surfaces

FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module 0



    FLEX–03 350M FLEX–03 360M FLEX–03 370M FLEX–03 380M FLEX–03 390M
Nominal Power PMPP [W] 350 360 370 380 390
Aperature Efficiency η [%] 15.30% 15.70% 16.10% 16.60% 17.00%
Power Output Tolerance   [W] +10/-0 +10/-0 +10/-0 +10/-0 +10/-0
Maximum Power Voltage VMPP [V] 29.2 29.5 29.9 30.2 30.5
Maximum Power Current IMPP [A] 12 12.2 12.4 12.6 12.8
Open Circuit Voltage VOC [V] 36.9 37.1 37.3 37.5 37.7
Short Circuit Current ISC [A] 14.1 14.1 14.1 14.1 14.1
Maximum Series Fuse Rating   [A] 25
Maximum System Voltage (IEC/UL) [V] 1000/1000



FLEX SERIES–03M CIGS Module Amorphous Silicon MC4 Thin Film Pv Module 1

Applications:

The Sangsolar Thin Film solar module is made of high-quality materials, including tempered glass and MC4 connector type, ensuring durability and longevity. Its cell type is Thin Film, which is known for its high efficiency and reliability, with a module efficiency of between 10-12%. This makes it an excellent choice for those who want to save on energy costs while reducing their carbon footprint.

The Sangsolar Thin Film solar module can operate in extreme temperatures, ranging from -40°C to +85°C, making it suitable for use in a variety of environments. Its flexibility makes it an ideal choice for installation on curved or uneven surfaces, making it perfect for various applications.

One of the most significant advantages of the Sangsolar Thin Film solar module is its versatility. It can be used in various product application occasions and scenarios, such as:

  • Residential - homeowners can install the Sangsolar Thin Film solar module on their roofs to generate electricity and save on energy costs.
  • Commercial - businesses can use the Sangsolar Thin Film solar module to power their operations and reduce their energy expenses.
  • Agriculture - farmers can use the Sangsolar Thin Film solar module to power their irrigation systems and other agricultural machinery, reducing their dependence on the grid.
  • Transportation - the flexibility of the Sangsolar Thin Film solar module makes it an ideal choice for use on vehicles, such as RVs and boats, to generate electricity while on the move.
  • Remote Areas - the Sangsolar Thin Film solar module is perfect for use in remote areas where grid connectivity is limited or non-existent.

In summary, the Sangsolar Thin Film solar module is a versatile and flexible PV solar panel that can be customized to fit specific needs. Its high-quality materials, durability, and efficiency make it an excellent choice for various applications and scenarios. Whether for residential, commercial, agriculture, transportation, or remote areas, the Sangsolar Thin Film solar module is a reliable and cost-effective option for generating clean energy.



Customization:

The Thin Film cell type offers flexibility, making it ideal for various applications. You can also rest assured that these panels meet industry standards, as they are certified by CE, TUV, and UL.

If you're looking for a flexible solar panel that can be tailored to your needs, look no further than Sangsolar's customization services. Get in touch with us today to discuss your requirements.



Support and Services:

The Thin Film solar module product comes with technical support and services to ensure optimal performance. Our team of experts is available to assist with any questions or issues related to installation, maintenance, and troubleshooting. We also offer training and educational resources to help users better understand the product and its capabilities. Our services include:

  • On-site technical support
  • Remote technical support
  • Module performance testing
  • System design and optimization
  • Maintenance and repair services
  • Warranty and guarantee services


Packing and Shipping:

Product Packaging:

The Thin Film solar module will be packaged securely to ensure it reaches its destination in pristine condition. Each module will be individually wrapped in a protective layer to prevent any scratches or damage during shipping. The modules will then be placed in a sturdy cardboard box with foam inserts to prevent any movement during transport. The box will be labeled with the product name, quantity, and handling instructions.

Shipping:

Once the Thin Film solar modules are packaged and labeled, they will be shipped via a reliable carrier. The carrier will be selected based on the destination, delivery time, and cost. The customer will be provided with a tracking number so they can monitor the status of their shipment. The estimated delivery time will be provided to the customer at the time of purchase.



FAQ:

A: The efficiency of our Thin Film solar modules ranges from 10% to 12%, depending on the specific model.

``` ```

Q: Where are Sangsolar Thin Film solar modules manufactured?

A: Our Thin Film solar modules are manufactured in China, where our company is based.

``` ```

Q: What is the warranty period for Sangsolar Thin Film solar modules?

A: Our Thin Film solar modules come with a 10-year product warranty and a 25-year power output warranty.

``` ```

Q: How are Sangsolar Thin Film solar modules installed?

A: Our Thin Film solar modules can be installed on rooftops or on the ground using mounting systems. Please consult with a qualified installer for specific installation requirements.

``` ```

Q: Are Sangsolar Thin Film solar modules suitable for harsh weather conditions?

A: Yes, our Thin Film solar modules are designed to withstand harsh weather conditions such as strong winds and heavy snow loads. They are also resistant to corrosion and moisture.

Tags:

cigs pv module,

thin film solar module,

cigs module
