FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material
  • FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material
  • FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material
  • FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material
  • FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material

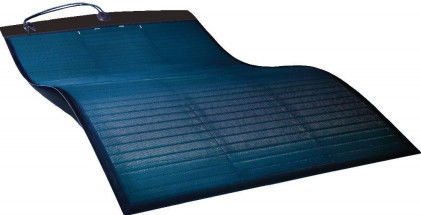

FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material

Nominal Power PMPP [W: 220
Maximum Power Voltage: 18.8
Maximum Power Current: 11.78
Aperature Efficiency: 14.9%
Dimension: 1710x973x17mm
Frame Material: Aluminum Alloy
Backsheet Material: Polyester
Certifications: CE, TUV, UL
Download

Product Details

Connector Type::
MC4
Module Efficiency::
10-12%
Glass Type::
Tempered Glass
Cell Type::
Thin Film
Operating Temperature::
-40°C To +85°C
Highlight::

270w cigs pv module

,

cigs pv module aluminum alloy

,

220w cigs module

Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV
Model Number:
SANGSOLAR
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
Highlight:

270w cigs pv module

,

cigs pv module aluminum alloy

,

220w cigs module

Product Description

Product Description:

Our Thin Film solar modules have been certified by CE, TUV, and UL, ensuring that they meet the highest standards of safety and reliability. You can rest easy knowing that our products have been thoroughly tested and certified to ensure that they are safe, efficient, and reliable.

Our Thin Film solar modules are designed to operate in extreme temperatures, with an operating temperature range of -40°C to +85°C. This makes them the perfect choice for those looking for a reliable power source in harsh environments.

Our Thin Film solar modules feature a durable polyester backsheets, which helps to protect the module from the elements and ensures that it remains reliable and efficient over time. This makes them the perfect choice for those looking for a long-lasting and reliable power source.

Our Thin Film solar modules are highly efficient, with a module efficiency of 10-12%. This means that they are able to convert a higher percentage of sunlight into usable electricity, making them a powerful and efficient source of clean energy.

Our Thin Film solar modules are made using amorphous silicon cells, which are known for their high efficiency and reliability. This makes them the perfect choice for those in need of a highly efficient and reliable power source.

Our Thin Film solar modules are also highly customizable, with options for Foldable Solar Panels and Customized Solar Panels available upon request. This means that you can have a solar module that is tailored to your specific needs and requirements, ensuring that you get the most out of your investment.

In conclusion, our Thin Film solar modules are the perfect choice for those in need of a highly efficient and reliable power source. With certifications from CE, TUV, and UL, a wide operating temperature range, a durable polyester backsheets, and a module efficiency of 10-12%, you can rest easy knowing that our products are the best on the market. And with options for Foldable Solar Panels and Customized Solar Panels available upon request, you can have a solar module that is tailored to your specific needs and requirements.

FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material 0



    FLEX–03 220M FLEX–03 230M FLEX–03 240M FLEX–03 250M FLEX–03 260M FLEX–03 270M
Nominal Power PMPP [W] 220 230 240 250 260 270
Aperature Efficiency η [%] 14.90% 15.60% 16.30% 17.00% 17.60% 18.30%
Power Output Tolerance   [W] +10/-0 +10/-0 +10/-0  +10/-0 +10/-0 +10/-0
Maximum Power Voltage VMPP [V] 18.8 19.4 20 20.6 21.2 21.8
Maximum Power Current IMPP [A] 11.78 11.9 12.03 12.16 12.28 12.41
Open Circuit Voltage VOC [V] 23.7 24.2 24.7 25.3 25.8 26.3
Short Circuit Current ISC [A] 13.87 13.74 13.61 13.48 13.35 13.22
Maximum Series Fuse Rating   [A] 25
Maximum System Voltage (IEC/UL) [V] 1000/1000



FLEX SERIES–03M 1.7 METER 1m x 1.7m 220W – 270W CIGS PV Module Aluminum Alloy Frame Material 1

Features:

Record efficiency levels in a flexible form factor



Low installed weight at less than 2.0 kg/m2 (<0.5 lb/ft2)



No penetrations, ballast or racking required



Applicable for high wind load and high seismic hazard areas



Bypass diodes reduce PV system shading losses



Directly bonds to many approved surfaces



Applications:

Sangsolar's Thin Film solar module is a versatile product that can be used for various application occasions and scenarios. Its flexible and lightweight design makes it a great choice for installations where traditional rigid solar panels cannot be used. The following are some of the product application occasions and scenarios:

1. Residential Rooftops: Sangsolar's Thin Film solar module can be easily installed on rooftops of residential buildings. Its full black design blends seamlessly with the roof, giving a sleek and modern look to the building. The module's high efficiency of 10-12% ensures that it generates enough electricity to meet the energy needs of a typical household.

2. Commercial Buildings: Sangsolar's Thin Film solar module is also suitable for commercial buildings. Its flexible design allows it to be installed on curved surfaces, making it a great choice for buildings with unique architectural features. The module's high efficiency ensures that it generates enough electricity to meet the energy needs of a commercial building.

3. Solar Farms: Sangsolar's Thin Film solar module is a great choice for large-scale solar farms. Its low weight and flexible design make it easy to transport and install. The module's high efficiency ensures that it generates enough electricity to contribute significantly to the overall energy output of the solar farm.

4. Off-Grid Applications: Sangsolar's Thin Film solar module can also be used for off-grid applications such as RVs, boats, and cabins. Its flexible and lightweight design makes it easy to transport and install. The module's high efficiency ensures that it generates enough electricity to meet the energy needs of off-grid applications.

In summary, Sangsolar's Thin Film solar module is a versatile product that can be used in various application occasions and scenarios. Its full black design, flexibility, and high efficiency of 10-12% make it a great choice for installations where traditional rigid solar panels cannot be used. Whether it is for residential rooftops, commercial buildings, solar farms, or off-grid applications, Sangsolar's Thin Film solar module is a reliable and efficient choice.

Keywords: Full Black Solar Panels, Flexible PV Solar Panels, Black Solar PV Panels



Customization:

Our product customization services offer flexibility in design and can cater to different specifications and requirements. We also specialize in producing Flexible Solar Panels, Flexible PV Solar Panels, and Double Glass Solar Panels.



Support and Services:

The Thin Film solar module product technical support and services include:

- Assistance with installation, commissioning, and start-up

- Troubleshooting and diagnosis of technical issues

- Warranty and repair services

- Technical training and education for installers and end-users

- Performance analysis and optimization

- Product upgrades and enhancements

- Regulatory compliance and certification support

- Environmental impact assessments and sustainability reporting



Packing and Shipping:

Product Packaging:

The solar module--Thin Film will be packed in a sturdy cardboard box with ample cushioning to ensure that the product is protected during transportation. The box will also be clearly labeled with the product name and handling instructions.

Product Shipping:

The solar module--Thin Film will be shipped via a reliable and reputable courier service to ensure that it arrives at its destination safely and on time. Customers will receive a tracking number so they can keep track of their shipment's progress.



FAQ:

Q: What is the brand name of the solar module Thin Film product?

A: The brand name of the solar module Thin Film product is Sangsolar.

Q: Where is the Thin Film solar module product made?

A: The Thin Film solar module product is made in China, the place of origin.

Q: What is the power output of the Sangsolar Thin Film solar module?

A: The power output of the Sangsolar Thin Film solar module varies based on the specific model. Please refer to the product specification sheet for detailed information.

Q: Is the Sangsolar Thin Film solar module suitable for residential or commercial use?

A: The Sangsolar Thin Film solar module is suitable for both residential and commercial use, depending on the specific model and installation requirements.

Q: Does the Sangsolar Thin Film solar module come with a warranty?

A: Yes, the Sangsolar Thin Film solar module comes with a warranty. Please refer to the product specification sheet for detailed warranty information.
