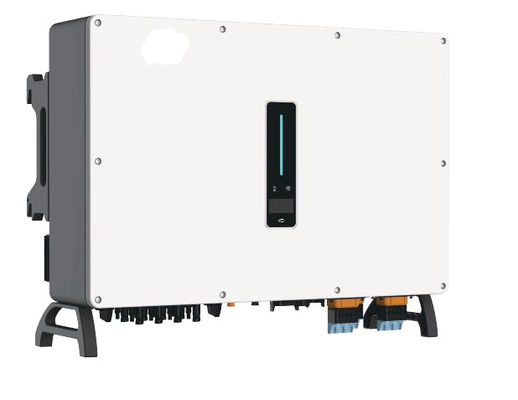

25-50kW Hybrid Inverter MHT-25/30/36/40/50K-100 IP65 For Indoor And Outdoor Installation
  • 25-50kW Hybrid Inverter MHT-25/30/36/40/50K-100 IP65 For Indoor And Outdoor Installation
  • 25-50kW Hybrid Inverter MHT-25/30/36/40/50K-100 IP65 For Indoor And Outdoor Installation
  • 25-50kW Hybrid Inverter MHT-25/30/36/40/50K-100 IP65 For Indoor And Outdoor Installation
  • 25-50kW Hybrid Inverter MHT-25/30/36/40/50K-100 IP65 For Indoor And Outdoor Installation

25-50kW Hybrid Inverter MHT-25/30/36/40/50K-100 IP65 For Indoor And Outdoor Installation

Power: 37.5kw
Input Voltage: 1000v
Input Current: 30×4
Output Current: 42.0a
Dimensions: 800×620×300mm
Weight: 72.0kg
Highlight:

ess 50kW Hybrid Inverter

,

ip65 50kw hybrid inverter

,

solar hybrid inverter

Download

Product Details

Place of Origin:
China
Brand Name:
SANGSOLAR
Certification:
CE/TUV
Model Number:
SANGSOLAR
Minimum Order Quantity:
2 sets
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
50000sets
Highlight:

ess 50kW Hybrid Inverter

,

ip65 50kw hybrid inverter

,

solar hybrid inverter

Product Description

25-50kW Hybrid Inverter
MHT-25/30/36/40/50K-100
98.8% 30A 100% 100A
Max.Efficiency PV Input Current Unbalanced Output Charge/Discharge

Overview
Optimal Power &Storage
·98.8%Max.Efficiency
·(·)30A PV input current,4 MPP trackers
·100A charge/discharge current

Strong Load &Back-up
110%continuousAC outputoverloading
·(·120%max.back-up output overloading @60s UPS-level switching ·150%DC oversizing

Convenient Installation &Operation
·Plug &Play terminals for easy wiring
·Solinteg l-light,power and alarm indicator
·(·)OLED displayand App for setting and data management WIFI configuration via App

Flexible Design &Use
·135-750Vwide batteryvoltage range
·(·)IP65 for indoor and outdoor installation
Compact size and elegant appearance




Feature

ModelMHT-25K-100 MHT-30K-100 MHT-36K-100 MHT-40K-100 MHT-50K-100
PV Input
Recommended Max. input power [kW]37.5 45.0 54.0 60.0 75.0
Start-up voltage [V]
135 135 135 135 135
Max. DC input voltage* [V]1000* 1000* 1000* 1000* 1000*
Rated DC input voltage [V]620 620 620 620 620
MPPT voltage range* [V]200-850* 200-850* 200-850* 200-850* 200-850*
No. of MPP trackers4 4 4 4 4
No. of DC inputs per MPPT2 2 2 2 2
Max. input current [A]30×4 30×4 30×4 30×4 30×4
Max. short-circuit current [A]40×4 40×4 40×4 40×4 40×4
Battery Side
Battery typeLithium Battery (with BMS)
Battery voltage range [V]135-750
Maximum charging/discharge current [A]100/100
Grid Side
Rated output power [kW]25.0 30.0 36.0 40.0 50.0
Max. output apparent power [kVA]27.5 33.01) 39.6 44.0 55.0
Max. input apparent power** [kVA]30.0 36.0 43.5 48.0 60.0
Max. charging power of battery [kW]25.0 30.0 36.0 40.0 50.0
Rated AC voltage3L/N/PE; 220/380V;230/400V;240/415V
Rated AC frequency [Hz]50/60 50/60 50/60 50/60 50/60
Max. output current [A]42.0 50.02) 60.0 66.0 83.0
Power factor0.8 leading …0.8 lagging
Max. total harmonic distortion<3% @Rated output power
DCI<0.5%In <0.5%In <0.5%In <0.5%In <0.5%In
Back-up Side
Rated output power [kW]25.0 30.0 36.0 40.0 50.0
Max. output apparent power [kVA]27.5 33.0 39.6 44.0 55.0
Max. output current [A]42.0 50.0 60.0 66.0 83.0
UPS switching time<20ms <20ms <20ms <20ms <20ms
Rated output voltage3L/N/PE; 220/380V;230/400V;240/415V
Rated output frequency [Hz]50/60 50/60 50/60 50/60 50/60
Voltage harmonic distortion<3% @Linear load
Generator Side
Max. intput apparent power** [kVA]30.0 36.0 43.5 48.0 60.0
Max. charging power of battery [kW]25.0 30.0 36.0 40.0 50.0
Rated AC voltage3L/N/PE; 220/380V;230/400V;240/415V
Rated AC frequency [Hz]50/60 50/60 50/60 50/60 50/60
Efficiency
Max. efficiency98.8% 98.8% 98.8% 98.8% 98.8%
European efficiency98.3% 98.3% 98.3% 98.3% 98.3%
Protection
DC reverse polarity protectionIntegrated
Battery input reverse connection protectionIntegrated
Insulation resistance protectionIntegrated
Surge protectionIntegrated
Over-temperature protectionIntegrated
Residual current protectionIntegrated
Islanding protectionIntegrated
AC over-voltage protectionIntegrated
Overload protectionIntegrated
AC short-circuit protection
Integrated
General Data
Over voltage categoryPV: II Main: III
Dimensions [W×H×D mm]
800×620×300
Weight [KG]72.0
Protection degreeIP65
Standby self-consumption [W]<15
TopologyTransformerless
Operating Temperature Range [°C]-30~60
Relative Humidity [%]0~100
Operating Altitude [m]3000 (>3000mderating)
CoolingSmart fan
Noise Level [dB]<50
DisplayOLED & LED
CommunicationCAN, RS485,WiFi/LAN (Optional)

* PV Max. Input voltage is 850V, otherwise inverter will be waiting;

** Max apparent power from the grid means the maximum power imported from the utility grid used to satisfy the backup loads and charge the battery;

1) AS 4777.2,VDE-AR-N 4105: 30.0kVA; 2) AS 4777.2,VDE-AR-N 4105: 43.5A
