Product Description:

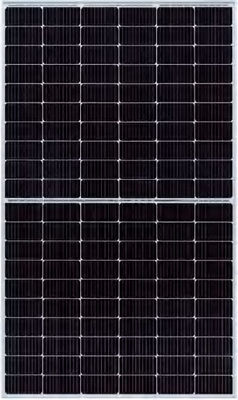

The PERC Solar Module is a high-quality solar panel designed for efficient energy conversion. It features a mono-crystalline silicon solar cell that measures 182*91mm, which allows for maximum sunlight absorption. The PERC Solar Module is also equipped with a 1.6mm black grid-patterned back glass that provides durability and protection from the elements. In terms of safety, the PERC Solar Module has a Safety Protection Class of Class Ⅱ, ensuring that it is safe to use and handle. It is also designed with mechanical load considerations in mind, with a front side load tolerance of 5400Pa and a back side load tolerance of 2400Pa. The PERC Solar Module comes with output cables that measure 4mm2 and have a length of 300mm(+)/300mm(-), which can also be customized to suit your specific needs. This product is perfect for use with an AC DC hybrid solar charge controller or an intelligent solar charge controller, ensuring efficient energy conversion and management. Overall, the PERC Solar Module is a reliable and durable solar panel that is perfect for a range of applications. Whether you are looking to power a small home or a large commercial building, this product is sure to meet your needs and exceed your expectations.
Features:
MBB&SMBB Half-cut Cell Technology
New circuit design,lower internal current, and lower Rsloss.
High Power Density
A new generation of monocrystalline
products with reducedresistive losses for
greaterpower
Mechanical Properties
An aluminum frame in special design for better mechanical properties and more efficient installation.
Excellent Weather Resistance
The solar modulescan meet the IEC standard requirements with strong resistantto risks
such assaltspray,ammonia gas,dust,snail marks and electricpotential induced attenu- ation.
4 Times 100% EL Detection
Guarantee no micro cracks
FLFCTRICAI PROPFRTIES
STC: irradiance,1000W/m²;cell temperature,25℃;spectral range,AM1.5
NOCT: irradiance,800W/m²;ambient temperature,20℃;spectral range,AM1.5;wind speed,1m/s
| |
STC |
NOCT |
STC NOCT |
STC NOCT |
STC NOCT |
STC NOCT |
| Maximum power-Pmp(W) |
535 |
407.12 |
540 411.12 |
545 414.83 |
550 418.55 |
555 422.29 |
| Open-circuit voltage -Voc(V) |
49.3 |
46.87 |
49.45 47.01 |
49.60 47.15 |
49.75 47.29 |
49.90 47.44 |
| Short-circuit current-Isc(A) |
13.89 |
11.14 |
13.90 11.20 |
13.97 11.25 |
14.04 11.31 |
14.11 11.37 |
| Maximum operating voltage-Vmp(V) |
41.45 |
39.53 |
41.60 39.67 |
41.75 39.82 |
41.90 39.96 |
42.05 40.10 |
| Maximum operating current -Imp(A) |
12.91 |
10.3 |
12.99 10.36 |
13.0610.42 |
13.13 10.47 |
13.20 10.53 |
| Module conversion efficiency |
20.71% |
20.90% |
21.10% |
21.29% |
21.48% |
| ELECTRICAL PROPERTIES VERSUS POWER GAINS FROM THE REAR(TAKINGAIRRADIANCE OF 10%) |
| Maximum power-Pmp(W) |
572 |
578 |
583 |
589 |
594 |
| Open-circuit voltage-Voc(V) |
49.30 |
49.45 |
49.60 |
49.75 |
49.90 |
| Short-circuit current-Isc(A) |
14.86 |
14.87 |
14.95 |
15.02 |
15.10 |
| Maximum operating voltage-Vmp(V) |
41.45 |
41.60 |
41.75 |
41.90 |
42.05 |
| Maximum operating current -Imp(A) |
13.81 |
13.90 |
13.97 |
14.05 |
14.12 |
| Irradiance ratio (Rear/Front) Bifaciality |
10% 70±5% |
| Power tolerance(W) |
(0,+5) |
| Mechanical load |
Front5400Pa/Back2400Pa |
| Maximum system voltage(V) |
1500 |
| Maximum series fuse rating(A) |
25 |
| Operating temperature |
-40～+85℃ |
MECHANICAL PROPERTIES
| Module dimensions(L*W*H |
2278×1134×35mm |
| Weight |
31.5kg |
| Cell quantity |
144PCS |
|
Cell model PERC Monocrystalline182x91mm
Glass 2.0mm AR,High Transmission,semi-tempered glass
|
| Frame |
Anodized aluminium alloy |
| Junction box |
IP68 Rated |
| Output line Connector |
4.0mm²,wirelength 300mm MC4 Compatible |
| TEMPERATURE |
CHARACTERISTIC |
| Temperature |
coefficient(Pmax) |
-0.35%/℃ |
| Temperature |
coefficient |
(Voc) |
-0.27%/℃ |
| Temperature |
coefficient |
(Isc) |
+0.05%/℃ |
| NMOT |
|
|
45±2℃ |
PACKAGING
| Container |
40HQ |
| PCS/Pallet |
31 |
| PCS/Container |
620 |
Applications:
Sangsolar is a top-quality brand from China that provides high-performance PERC solar modules for various occasions and scenarios. The product is designed with ClassⅡ safety protection, making it safe and reliable for users.
The PERC solar module comes with output cables of 4mm2 and 300mm length, which can be customized to suit specific requirements. This makes it a perfect fit for emergency solar power kits and home solar system kits. The black solar PV panels are aesthetically pleasing and blend well with the environment.
The junction box of the PERC solar module is IP68 rated and has three bypass diodes. This ensures that the module is well protected from dust, water, and other external factors. The mechanical load capacity of the front side is 5400Pa and 2400Pa for the backside, making it strong enough to withstand harsh weather conditions.
The PERC solar module is made of mono-crystalline silicon with a size of 182*91mm, making it highly efficient in converting sunlight into electricity. This feature makes it ideal for outdoor activities such as camping, hiking, and mountaineering. It can also be used in residential and commercial settings, including rooftops and solar farms.
Whether you need a reliable power source for emergency situations or want to reduce your carbon footprint, the Sangsolar PERC solar module is an excellent choice. Its versatility and durability make it suitable for a wide range of applications, including off-grid and on-grid systems. Invest in this product today and enjoy the benefits of clean energy.
Customization:
Introducing Sangsolar PERC Solar Module, the perfect solution for your energy needs. Our solar panel is made with high-quality Mono-Crystalline Silicon 182*91mm cells, ensuring maximum efficiency and durability. Our product is made in China, adhering to strict quality standards.
The Sangsolar PERC Solar Module is designed with safety in mind, utilizing a ClassⅡ safety protection class. The panel operates at temperatures ranging from -40°C to +85°C, ensuring that it can withstand even the harshest weather conditions.
Our product is equipped with a 1.6mm Black Grid-patterned Back Glass and an IP68 Junction Box with 3 Bypass Diodes, making it both durable and reliable. Upgrade your solar panel with our Intelligent Solar Charge Controller, which provides efficient and effective charging for your system.
Choose Sangsolar PERC Solar Module for your energy needs and enjoy the benefits of Black Solar PV Panels that are both efficient and stylish.
FAQ:
Q: What is PERC technology in Sangsolar modules?
A: PERC stands for Passivated Emitter Rear Cell technology. This technology improves the efficiency of solar cells by placing a passivation layer at the rear of the cell. Sangsolar modules use PERC technology to achieve higher efficiency and performance.
Q: What is the warranty period for Sangsolar PERC modules?
A: Sangsolar PERC modules come with a standard 25-year power output warranty and a 10-year product warranty.
Q: How are Sangsolar PERC modules tested for quality assurance?
A: Sangsolar PERC modules undergo rigorous testing to ensure they meet high standards of quality and performance. These tests include thermal cycling, damp heat testing, and mechanical load testing.
Q: What is the maximum power output of Sangsolar PERC modules?
A: The maximum power output of Sangsolar PERC modules varies depending on the specific model. Please refer to the product datasheet for detailed information on power output.
Q: Where are Sangsolar PERC modules manufactured?
A: Sangsolar PERC modules are manufactured in China, the place of origin of the brand.
