15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65
  • 15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65
  • 15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65

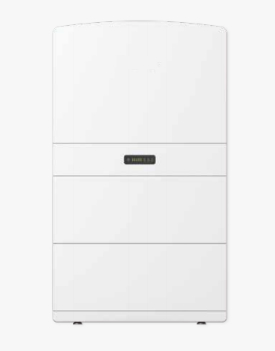

15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65
15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65
  • 15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65
  • 15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65

15kW Three Phase Hybrid Inverter Dual MPPT 20kVA EPS Backup 180-650V Battery IP65

Max. PV Power: 20,000W
MPPT Voltage Range: 180-950V
Voltage Range: 180-650V
Max. Charge/Discharge Current: 30A
Nominal Power: 15,000W
Grid Voltage: 230/400V 3-phase
Highlight:

20kVA Three Phase Hybrid Inverter

,

IP65 Three Phase Hybrid Inverter

,

15kW Three Phase Hybrid Inverter
Download

Product Details

Brand Name:
sangsolar
Certification:
IEC 62109-1/-2
Model Number:
HEC2-T15.0Hr2-Eu
Minimum Order Quantity:
Pallet
Price:
Negotiated
Packaging Details:
Carton on Pallet
Delivery Time:
10-30days
Payment Terms:
TT/LC/Alibabashop
Supply Ability:
2GW/Year
Highlight:

20kVA Three Phase Hybrid Inverter

,

IP65 Three Phase Hybrid Inverter

,

15kW Three Phase Hybrid Inverter

Product Description

HEC2-T15.0Hr2-Eu Industrial-Grade Three-Phase Hybrid Inverter (15kW)



Technical Superiority for Demanding Commercial Applications

This 15kW three-phase hybrid solar inverter represents the pinnacle of commercial-scale energy conversion technology, combining industrial-grade durability with intelligent energy management capabilities. Engineered for facilities requiring reliable, high-capacity power solutions, the system delivers exceptional performance through its advanced dual MPPT design and wide operational parameters.



Core Technology Specifications:

  • PV Input Configuration

  •

  • Dual independent MPPT trackers (10kW each)

    • Enables east-west array configurations with individual optimization

    • Reduces shading losses through per-string monitoring

  •

  • Ultra-wide 180-950V operating range

    • Supports high-voltage panels for reduced wiring costs

    • Maintains operation in low-light conditions down to 180V

  •

  • 30A maximum input current per channel

    • Accommodates high-current bifacial modules

    • Integrated current sensors for real-time diagnostics

  •

  • Battery System Compatibility

  •

  • 180-650V battery voltage range

    • Auto-detection for plug-and-play battery integration

    • Future-proof design for next-gen high-voltage batteries

  •

  • 30A continuous charge/discharge current

    • Rapid charging during peak production hours

    • Dynamic current adjustment based on battery health

  •

  • Multi-chemistry support

    • Pre-loaded profiles for Li-ion/lead-acid/saltwater

    • Advanced cycle counting and SoH monitoring

  •

  • AC Output Performance

  • 15kW continuous (20kW peak)

    • Industrial IGBTs ensure stable power delivery

    • 30-minute overload capacity for motor starts

  •

  • Certifications

  • UL 1741/IEC 62109 - Verified arc-fault protection

  • VDE-AR-N 4105 - Compliant German grid standards

  • EN 61000-6 - Exceeds EMC requirements

  •

  • Applications

    ✓ Manufacturing - Powers CNC machines continuously
    ✓ Cold Storage - Maintains refrigeration during outages
    ✓ Hospitals - Backup for critical medical equipment

  • 230/400V three-phase

    • <1% phase imbalance for sensitive equipment

    • Configurable wye/delta connections

  • <3% THD





    • Clean power for medical/lab equipment

    • Active harmonic filtering technology

    Technical Specifications Table

    Parameter Category Specification Details
    PV Input
    Max. PV Power 20,000W (2×10,000W MPPT)
    MPPT Voltage Range 180-950V
    Max. Input Current 30A per tracker
    Battery System
    Voltage Range 180-650V
    Max. Charge/Discharge Current 30A
    AC Output
    Nominal Power 15,000W
    Peak Power 20,000W
    Voltage 230/400V 3-phase
    Efficiency
    Peak Efficiency 97.7%
    European Efficiency 96.1%
    Physical
    Dimensions (W×H×D) 800×525×160mm
    Weight 52kg
    Cooling Smart forced air

    Certifications Table

    Certification Type Standard Region
    Safety UL 1741 North America
    Grid Compliance VDE-AR-N 4105 Germany
    EMC EN 61000-6-2/-6-4 Europe
    Battery Safety UN38.3 Global

    •
