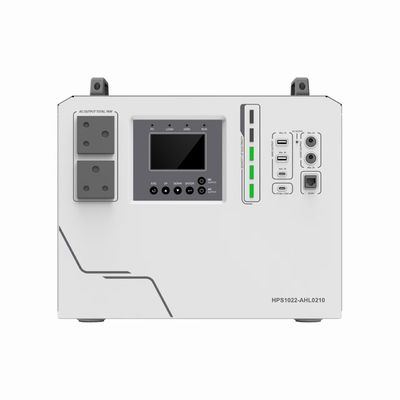

1kW LiFePO4 Home Battery Backup System with MPPT Solar Charger, 220VAC Pure Sine Wave Inverter, and Multiple DC Outputs

1kW LiFePO4 Home Battery Backup System with MPPT Solar Charger, 220VAC Pure Sine Wave Inverter, and Multiple DC Outputs

1kW LiFePO4 Home Battery Backup System with MPPT Solar Charger, 220VAC Pure Sine Wave Inverter, and Multiple DC Outputs

1kW LiFePO4 Home Battery Backup System with MPPT Solar Charger, 220VAC Pure Sine Wave Inverter, and Multiple DC Outputs

Rated Voltage:	220VAC
Input Voltage Range:	200VAC ~ 240VAC
Max. Input Current:	7A
Frequency:	50Hz/60Hz
Rated Power:	1000W
Max. Charging Current:	20A
Highlight:	1kW LiFePO4 home battery backup , MPPT solar charger battery system , 220VAC pure sine wave inverter

Download

Product Details

Brand Name:

sangsolar

Model Number:

HPS1022- AHL0210

Minimum Order Quantity:

Pallet

Price:

Negotiated

Packaging Details:

Carton on Pallet

Delivery Time:

10-30days

Payment Terms:

TT/LC/Alibabashop

Supply Ability:

2GW/Year

Highlight:

1kW LiFePO4 home battery backup

,

MPPT solar charger battery system

,

220VAC pure sine wave inverter

Product Description

1kW LiFePO4 Solar Home Battery Backup System - Reliable Power for Home and Outdoor Use

Key Features and Benefits

Advanced MPPT Solar Charging Technology

Achieves up to 99.5% conversion efficiency for maximum solar energy harvest
Benefit: Significantly reduces electricity costs by optimizing solar power utilization

Long-Life LiFePO4 Battery System

40Ah capacity with 2000+ charge cycles at 80% depth of discharge
*Benefit: Provides reliable performance for 5-8 years with minimal capacity degradation*

Pure Sine Wave Inverter Output

1000W continuous power with 1800W surge capacity for motor starting
Benefit: Safely powers sensitive electronics like laptops and medical equipment

Multiple Charging and Output Options

Supports solar, grid, and generator charging simultaneously
Benefit: Ensures continuous power availability under various conditions

Smart Monitoring System

Real-time data display and remote control via Bluetooth connectivity
Benefit: Enables proactive maintenance and optimized system performance

Technical Specifications Details

1kW LiFePO4 Home Battery Backup System with MPPT Solar Charger, 220VAC Pure Sine Wave Inverter, and Multiple DC Outputs 0

1kW LiFePO4 Home Battery Backup System with MPPT Solar Charger, 220VAC Pure Sine Wave Inverter, and Multiple DC Outputs 1

Application Scenarios

Home Emergency Backup

Powers essential appliances during grid outages
Automatic switchover within 20ms ensures uninterrupted operation

Off-Grid Solar System

Ideal for cabins, farms, and remote locations
Maximizes solar energy utilization with efficient MPPT charging

Mobile Power Solution

Suitable for RVs, boats, and outdoor activities
Compact design with multiple output options for various devices

Performance Advantages

Energy Efficiency

High conversion efficiency reduces energy losses
Smart power management optimizes consumption patterns

Reliability and Safety

Comprehensive protection circuits prevent damage
Robust construction ensures long-term durability

User Convenience

Plug-and-play setup minimizes installation time
Intuitive interface requires minimal technical knowledge

Frequently Asked Questions

Q: What is the typical charging time from solar panels?
A: With 400W solar panels, the system fully recharges in 2-3 hours of good sunlight.

Q: Can it power air conditioning units?
A: It can support small AC units (up to 1000W) but not large central air systems.

Q: Is professional installation required?
A: Basic installation can be DIY, but we recommend professional help for grid connection.

Usage Recommendations

Optimal Operating Conditions

Install in well-ventilated, dry locations
Maintain ambient temperature between 0°C and 40°C
Ensure adequate clearance around the unit for airflow

Maintenance Guidelines

Keep the unit clean and dust-free
Regularly check connection terminals
Monitor battery status through the display

Safety Precautions

Avoid exposure to water and direct sunlight
Use only compatible charging sources
Follow local electrical codes for installation
