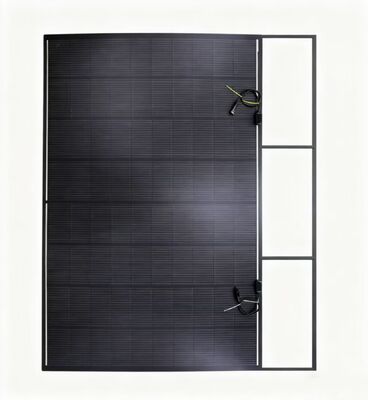

SHFM-430-T3 420W Flexible Solar Panel – High-Efficiency N-TOPCON Technology for Demanding Applications
Introducing the 420W flexible solar panel, engineered for superior performance and unmatched versatility. Featuring advanced N-TOPCON cell technology, this panel delivers exceptional efficiency and reliability in diverse environments. With an ultra-lightweight design, IP68 waterproof rating, and robust construction capable of withstanding extreme weather conditions, it's the ideal choice for residential, commercial, and mobile applications. Backed by a 25-year linear power warranty, this panel ensures long-term energy savings and sustainable power generation.
Key Features & Benefits
-
High Power Output: 420W maximum power for enhanced energy generation
-
Advanced N-TOPCON Technology: Superior efficiency and better temperature performance
-
Lightweight & Flexible: Only 5.43 kg with 2.7mm thickness for easy installation
-
Weather Resistant: IP68 junction box provides complete dust and water protection
-
Excellent Load Capacity: Withstands 5400Pa snow load and 2400Pa wind pressure
-
Wide Temperature Range: Operates efficiently from -40°C to +85°C
-
Long Warranty: 12-year product warranty and 25-year linear power warranty
Technical Superiority
The SHFM-430-T3 420W represents the latest advancement in solar technology. Utilizing premium N-TOPCON cells in an optimized 8×10 configuration, it achieves outstanding conversion efficiency while maintaining excellent low-light performance. The panel's innovative frameless design reduces weight without compromising durability, and its superior temperature coefficients ensure consistent output even in high-temperature environments. With a positive power tolerance of 0 to +3%, you receive guaranteed performance that often exceeds rated specifications.
Working Principle
This flexible solar module operates through sophisticated N-TOPCON cell technology, which incorporates a ultra-thin passivation layer that significantly reduces surface recombination losses. The cells capture a wider spectrum of sunlight, including both visible and ultraviolet wavelengths, resulting in higher energy conversion rates. Generated electricity flows through the IP68-rated junction box and is delivered via industry-standard MC4 connectors, ensuring safe and efficient power transfer to your energy system while maintaining maximum reliability.
Application Scenarios
The versatility of this flexible 120W panel opens up a wide array of applications across diverse sectors:
-
Building & Construction Integration: Ideal for commercial and industrial roofs with limited load-bearing capacity, where its lightweight nature eliminates structural concerns. It is also the perfect solution for curved and special architectural structures, such as arched canopies, awnings, and heritage buildings, enabling seamless solar integration without compromising design.
-
Transportation Infrastructure: Can be deployed on highway slopes and noise barriers, turning underutilized public infrastructure into efficient power-generating assets, contributing to smart city and greenway projects.
-
Agriculture & Aquaculture: Excellently suited for PV agricultural greenhouses and flower markets, where its semi-transparent properties and light weight allow for simultaneous crop growth and solar generation, reducing energy costs for climate control.
-
Portable & Mobile Energy Systems: Perfect for balcony PV systems (BIPV) for urban residents, and for integration onto the roofs of vehicles, buses, and train carriages. This provides auxiliary power for air conditioning, lighting, and electronic devices, enhancing energy independence for mobile applications.
Competitive Advantages
-
Proven Reliability: Extensive testing ensures performance in the most challenging environments
-
Easy Installation: Flexible design eliminates need for complex mounting systems
-
Cost Efficiency: Reduces installation time and labor costs by up to 40%
-
Customization Options: Available in various sizes to meet specific project requirements
-
Environmental Benefits: Helps reduce carbon footprint with clean, renewable energy
-
Low Maintenance: Frameless design minimizes dirt accumulation and simplifies cleaning
-
Space Efficiency: Higher power output in compact dimensions maximizes space utilization
Frequently Asked Questions
Q: How flexible is this solar panel?
A: The panel can bend to a reasonable degree, making it suitable for curved surfaces, though we recommend consulting installation guidelines for specific curvature limits.
Q: What makes N-TOPCON technology better than conventional cells?
A: N-TOPCON cells offer higher efficiency, better temperature coefficients, and improved performance in low-light conditions compared to traditional solar cells.
Q: Can this panel withstand hail impacts?
A: While durable, we recommend installing in locations protected from direct hail impacts for optimal longevity.
Q: Is professional installation required?
A: While DIY installation is possible for experienced users, professional installation is recommended to ensure optimal performance and warranty protection.
Q: What is the actual power output I can expect?
A: With positive power tolerance, most panels output between 420-432W under standard test conditions, often exceeding the rated power.
Installation & Maintenance
-
Surface Preparation: Ensure installation surface is clean, dry, and free from sharp edges
-
Mounting Method: Use recommended adhesive systems or mounting tapes designed for flexible panels
-
Electrical Safety: Always follow local electrical codes and use certified installers
-
Cleaning Procedure: Clean with soft cloth and water; avoid abrasive cleaners or high-pressure sprays
-
Regular Inspection: Check connections and cables every 6 months for optimal performance
-
Shading Management: Position to avoid shading from surrounding objects for maximum efficiency
Technical Specifications
Why Choose Our 420W Solar Solution?
The SHFM-430-T3 420W flexible solar panel delivers an exceptional combination of high power output, installation flexibility, and long-term reliability. Its advanced N-TOPCON technology ensures superior performance across diverse environmental conditions, while the lightweight construction simplifies handling and reduces structural requirements. Whether you're implementing a new solar project or upgrading an existing system, this panel provides the perfect balance of efficiency, durability, and value. Experience the future of solar energy with a product designed to meet the demands of today's energy challenges while providing sustainable power for decades to come.
Our Advantages
We provide cutting-edge solar solutions that redefine where and how solar power can be deployed. Our core advantages are rooted in superior engineering and a deep understanding of real-world application challenges:
-
Ultimate Lightweight & Flexible Design: Our modules boast an exceptionally low weight of just 2.7kg/m² (approximately 30% of traditional glass modules) and an ultra-thin profile of only 2.7mm. This revolutionary form factor eliminates concerns for weight-restricted roofs and enables perfect conformity to various curved surfaces.
-
Rackless Installation & Superior Convenience: The flexible and lightweight nature allows for installation typically without complex metal racking systems. The modules can be directly adhered or simply fastened, significantly reducing installation complexity, labor costs, and time, offering unparalleled ease of deployment.
-
Proven High Reliability: The product has successfully passed multiple stringent TÜV SÜD tests, including hail impact, mechanical load, and humidity freeze tests. This ensures stable power output and long-term performance durability even in harsh environments, providing you with complete peace of mind.
Our Service Capabilities
We go beyond manufacturing to be your comprehensive solar energy partner. Our integrated service portfolio ensures your project is successful from concept to completion.
-
End-to-End Solutions: We provide tailored, end-to-end solar energy solutions designed to meet your specific energy needs and site conditions, from initial consultation to final commissioning.
-
Expert Roof Integration Design: Our team specializes in rooftop layout planning and integration design, ensuring optimal system performance, structural safety, and seamless aesthetics for both flat and curved surfaces.
-
Professional Electrical System Design: We deliver complete electrical design support, including string sizing, cable routing, and compatibility with inverters and energy storage systems, guaranteeing a safe, efficient, and code-compliant installation.
-
One-Stop Packaged Systems: Simplify your procurement process. We offer a one-stop-shop for all necessary components, including compatible mounting hardware, connectors, and cabling, ensuring system compatibility and reducing sourcing time and complexity.
